Blister Machines

Skin-wrapping means to join an object strongly to a cardboard through a plastic film. This one, heated and “softened“ by a radiating panel, will stick to the cardboard by means of a vacuum process and perfectly outline the shapes of the objects.

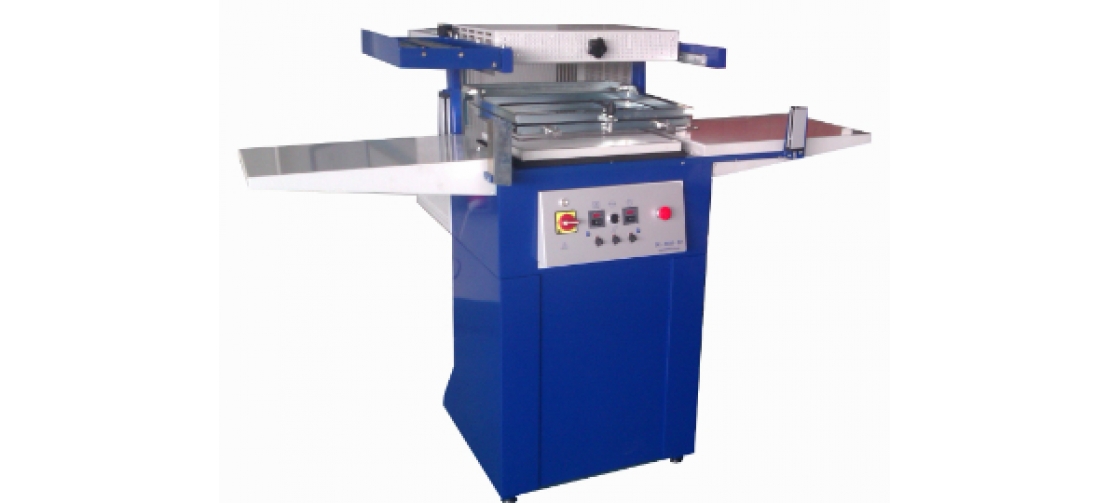

The Magic-skin5035 wrapper is a semiautomatic system (with automatic frame descent + vacuum connection/disconnection) and need only an operator to work.

  • Easy and robust
  • Low maintenance (periodical oil-change in the vacuum pump)
  • Suitable for thermoforming
  • Available Stand with wheels on request

Machine made according to CE rules.


Productivity

Up to 2 cycles/min

Maximum Card Dimensions

495 x 345 mm

Max. Product Height

100 mm

Dimensions

1860 x 650 x 800 mm

Electric Supply

220 V 1 Ph

Power

4 Kw
