Equipment

Flow-Pack Machines

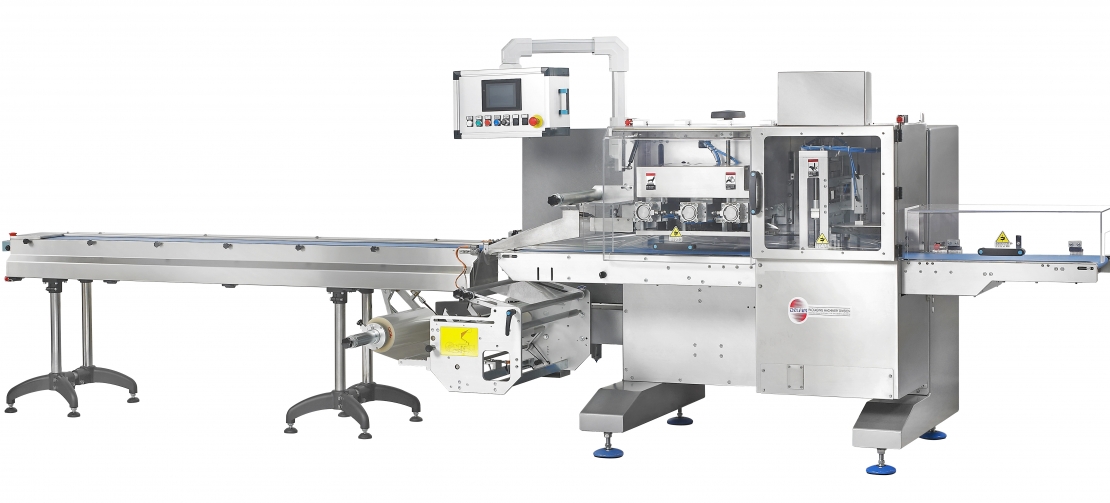

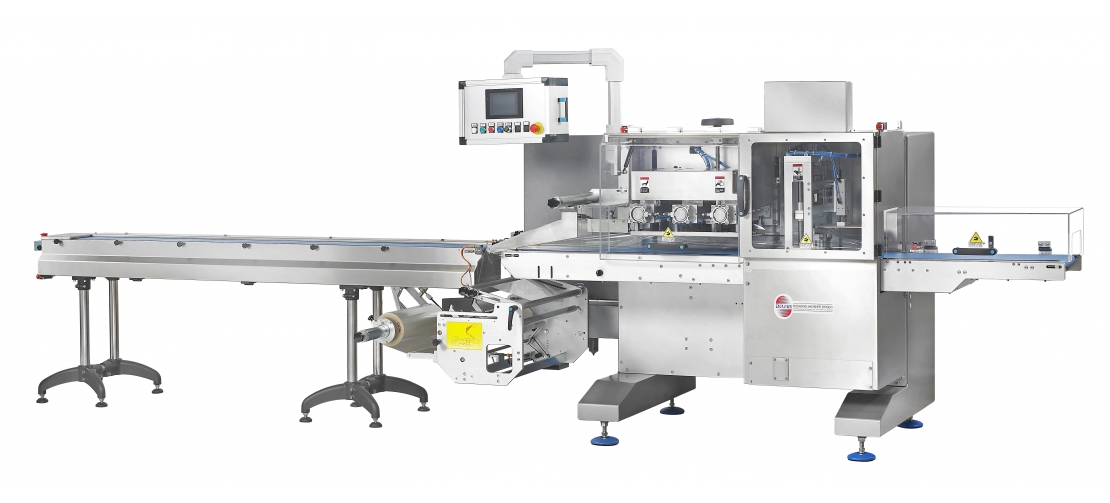

Tucano is an Automatic Horizontal Flow-Pack Machine. It works with a flat sheet plastic coil to make a "pillow-pack" bag with 3 welds - two transverse welds and a longitudinal one. Equipment suitable for the food and technical sector.

Features:

  • Main machine structure in painted steel RAL 9006 and stainless steel AISI 304  guards , covers and 4 height adjustable feet;
  • Cantilever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area;
  • 2600mm long infeed conveyor (usable loading space 1800mm approx.) complete with stainless steel AISI 304 deck plates and side guards;
  • Food grade nylon pushers and pushers supports;
  • Longitudinal fin seal assembly carried out by 3 sets of independent fin wheels diameter 120mm. First set is for pulling, second one is for sealing and third one is for driving. Pre-heating system and cooling devices. Pneumatic opening of the fin wheels;
  • One box  motion sealing assembly with 350mm wide jaws and pneumatic guilloting cutting knife assembly;
  • Electronic torque limiter with low pressure system on transverse sealing jaws;
  • Products conveying band to carry products under fin wheels assembly;
  • Motorization by means of 5 brushless motors  ,one for the infeed conveyor, one for fin wheels assembly, one under the wheels and one for transverse jaws assembly and one for closing the sealing jaws;
  • One self-centering cantilever film roll holder 600mm wide from the bottom;
  • One motorized film unwinding rubber roller;
  • Discharge conveyor belt one meter long with an independent motor controlled by inverter;
  • Shock proof Plexiglas safety guards with safety micro switches;
  • Color touch screen with the possibility to store up to 99 working programs;
  • One adjustable width or one fixed  forming box;
  • Machine direction from left to right as shown on general catalog;
  • Pneumatic components: FESTO;
  • Machine built in accordance with CE standards;
  • Voltage: 400V ,3PH, T+N.
