Flow-Pack Machines

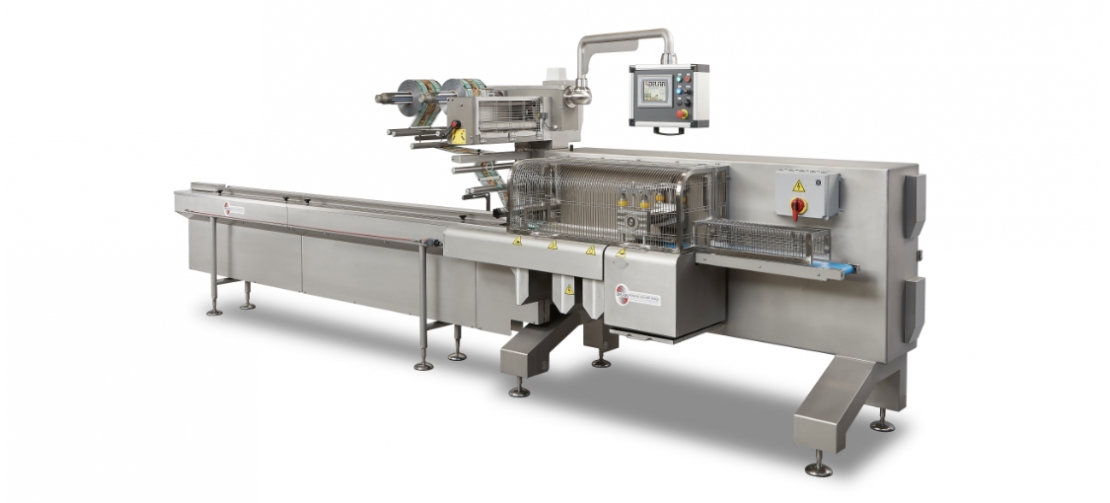

Automatic Horizontal Flow-Pack Machine. It works with a flat sheet plastic coil to make a "pillow-pack" bag with 3 welds - two transverse welds and a longitudinal one. Equipment suitable for the food and technical sector.

  • Main machine structure in painted steel  RAL 9006 and stainless steel AISI 304  guards;
  • Cantee-lever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area;
  • 2100mm long infeed conveyor (usable loading space 1400mm approx.) complete with stainless steel AISI 304 deck plates and side guards;
  • Food grade nylon pushers and pushers supports;
  • Longitudinal fin seal assembly carried out by 2 sets of independent fin wheels diameter 120mm. First set is for pulling , second one is for sealing;
  • One up-rotary motion sealing assembly with 240mm wide jaws and transverse or longitudinal sealing pattern complete with inclined cutting knife assembly. Sealing surface width 12,5mm;
  • Electronic torque limiter on transverse sealing jaws;
  • Motorization by means of 3 brushless motors ,one for the infeed conveyor, one for fin wheels assembly and one for transverse jaws assembly;
  • One self centering cantilever film roll holder 500mm wide from the top;
  • Discharge conveyor belt one meter long;
  • Shock proof Plexiglas safety guards with safety micro switches;
  • Color touch screen with the possibility to store up to 99 working programs;
  • One adjustable or one fixed forming box;
  • Machine direction from left to right as shown on general catalog;
  • Pneumatic components: FESTO;
  • Machine built in accordance with CE standards;
  • Voltage: 400V , 3PH , T+N

Speed

120/min

L x W (Machine)

2840 x 1020 mm

Lenght of the Conveyor Belt

1600 mm

Width of the Product

10-220 mm

Length of the Product

50-600 mm

Height of the Product

1-120 mm

Maximum diameter of the Film Coil

350 mm

Maximum Width of the Plastic

450 mm
