Equipment

Pallet Wrapping Machines

Semi-automatic Wrapping Machine ROTAX S3200

Semi-automatic wrapping machine, perfect for packaging with stretch film any type of product, even the most unstable ones.

The rotating arm wrappers have greater productivity (pallets/hour) if compared with the wrapping machines with rotating table.

Description

Semi-automatic wrapping machine with electromagnetic brake

  • Standard pallet dimension 1200×1200 mm;
  • Electromagnetic brake film tensioning;
  • Separate programming of top and bottom reinforcement wraps;
  • Pallet height detected by photocell – standard h=2100 mm; optional up to 3000 mm;
  • Arm rotation regulated by variable frequency drive from 4 to 15 rpm;
  • Sensor controlled rotation stop;
  • Variable speed of film carrier completely customizable;
  • Film carrier fall protection system;
  • Control panel with 10 password protected working cycles;
  • Tension 400V-50Hz;
  • Film coil diameter up to 250 mm.

<p>The ECOSPIR EVX Pallet Wrapper is characterized by its simplicity and reliability, allowing rapid learning to all operators. This palletizing equipment also allows to work with great efficiency, obtaining a packaging of the pallets of great quality and still a significant reduction in the consumable used.</p> <p><strong>Features:</strong></p> <ul> <li>Control touchscreen console;</li> <li>Mechanical stretch of the coil that allows significant film savings over manual packaging;</li> <li>Joy-stick controlled raising / lowering of the reel holder;</li> <li>Turntable speed controller;</li> <li>Manual work cycle;</li> <li>Automatic cycle with detection of the height of the pallet through photocell;</li> <li>Programming the reinforcement turns at the base and at the top of the pallet;</li> <li>Possibility to program up to 10 different work cycles (it allows storing the parameters of the lower and upper turns and still reading delay of the photocell);</li> <li>Static turntable stop system at the end of the work cycle.</li> </ul>

Wrapping Machine ECOSPIR EVX

<p><strong>Semi-automatic wrapping machine with rotating table.</strong></p> <p>Equipped with motorised pre-stretch (1- or 2-motors versions) for the film tension, that allow the maximum saving. This version has cutout rotating table (version TP) for easy loading with pallet truck.</p> <p>Spinny is also equipped with a latest generation Touch Screen control panel.</p> <h3><strong>Features:</strong></h3> <p>Semi-automatic wrapping machine with pre-stretch (motorized)</p> <ul> <li>Rotating table diameter 1650 mm load 2000 kg;</li> <li>Motorized pre-stretch with 1 or 2 motors;</li> <li>Distance between column and rotating table 500 mm;</li> <li>Wrapping height up to 2100 mm detected by photocell;</li> <li>Separate programming of top and bottom reinforcement wraps;</li> <li>Table rotation regulated by variable frequency drive from 4 to 12 rpm;</li> <li>Sensor controlled rotation stop;</li> <li>Variable speed of film carrier completely customizable;</li> <li>Independent top and bottom turns;</li> <li>Film carrier fall protection system;</li> <li>Touchscreen control panel with 10 password protected working cycles;</li> <li>Manual film carrier stop for reinforcement wrapping turns;</li> <li>Tension 230V-50Hz.</li> </ul> <p><strong>OPTIONALS</strong></p> <ul> <li>Rotating table capacity up to 2000 kg and diameter up to 1800 mm</li> <li>Pallet height up to 3100 mm</li> </ul> <p><strong>PRE-STRETCH SYSTEM = ECONOMIC ADVANTAGE</strong></p> <p>All models of SPINNY S300 are equipped with a high-performance MOTORIZED PRE-STRETCH SYSTEM. The power pre-stretch is a special device which allows the best utilization of the stretch film quantity: moreover, it permits to wrap light and unsteady pallets that couldn’t be wrapped with different frictioning systems. The stretch film is supplied in the right quantity by the rollers that are operated by a motor, which is controlled by an electronic system that measures the speed and keeps the film tension constant on the whole pallet’s surface. The motorized pre-stretch system allows an efficiency of film up to <strong>300%.</strong></p> <p><strong>DUAL MOTOR</strong></p> <p>The DUAL MOTOR version is designed to let you save even more film, obtaining more economic advantages. Based on the same principle of the single motor version, the DUAL MOTOR system offers variable stretch factor up to <strong>400%!</strong></p>

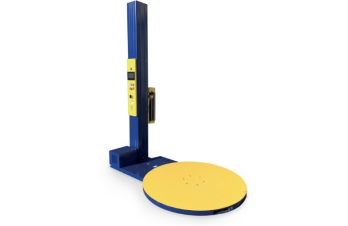

Wrapping Machine SPINNY

<h3><strong>Semi-automatic wrapping machine with electromagnetic film tensioning</strong></h3> <p><strong>Features:</strong></p> <ul> <li>Rotating table diameter 1650 mm load 2000 kg</li> <li>Electromagnetic brake film tensioning</li> <li>Distance between column and rotating table 500 mm</li> <li>Wrapping height up to 2100 mm detected by photocell</li> <li>Separate programming of top and bottom reinforcement wraps</li> <li>Table rotation regulated by variable frequency drive from 5 to 10 rpm</li> <li>Sensor controlled rotation stop</li> <li>Variable speed of film carrier completely customizable</li> <li>Independent top and bottom turns</li> <li>Film carrier fall protection system</li> <li>Electronic control panel with 10 password protected working cycles</li> <li>Manual film carrier stop for reinforcement wrapping turns.</li> <li>Tension 230V-50Hz</li> </ul> <p><strong>Optional:</strong></p> <ul> <li>Smart Touch control panel with 4 customizable working programs</li> <li>Rotating table capacity up to 2000 kg and diameter up to 1800 mm</li> <li>Pallet height up to 3100 mm</li> </ul> <p><strong>PRE-STRETCH SYSTEM = ECONOMIC ADVANTAGE</strong></p> <p>All models of SPINNY S300 are equipped with a high-performance MOTORIZED PRE-STRETCH SYSTEM. The power pre-stretch is a special device which allows the best utilization of the stretch film quantity: moreover, it permits to wrap light and unsteady pallets that couldn’t be wrapped with different frictioning systems. The stretch film is supplied in the right quantity by the rollers that are operated by a motor, which is controlled by an electronic system that measures the speed and keeps the film tension constant on the whole pallet’s surface. The motorized pre-stretch system allows an efficiency of film up to <strong>300%.</strong></p> <p><strong>DUAL MOTOR</strong></p> <p>The DUAL MOTOR version is designed to let you save even more film, obtaining more economic advantages. Based on the same principle of the single motor version, the DUAL MOTOR system offers variable stretch factor up to <strong>400%!</strong></p>

Wrapping Machine SPINNY TP
