Equipment

Sealing Machines

Semi-automatic impulse sealers

A range of semi-automatic sealing machines that can be used to securely seal filled bags or produce bags from roll material, suitable for sealing PE, PP, PVC, or any other laminated film with sealable inside layer, and produced in two finishes:

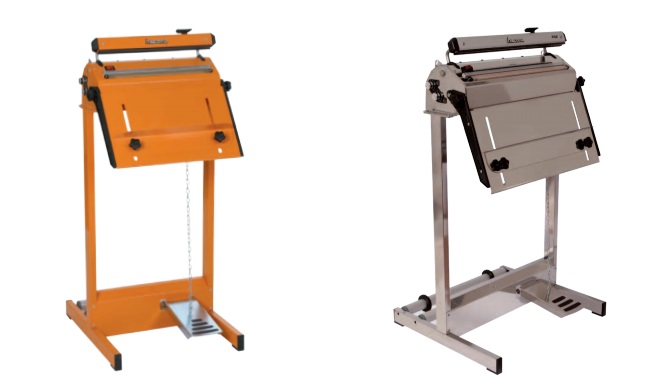

S – Model SI – Model
Orange Powder Coated Stainless Steel

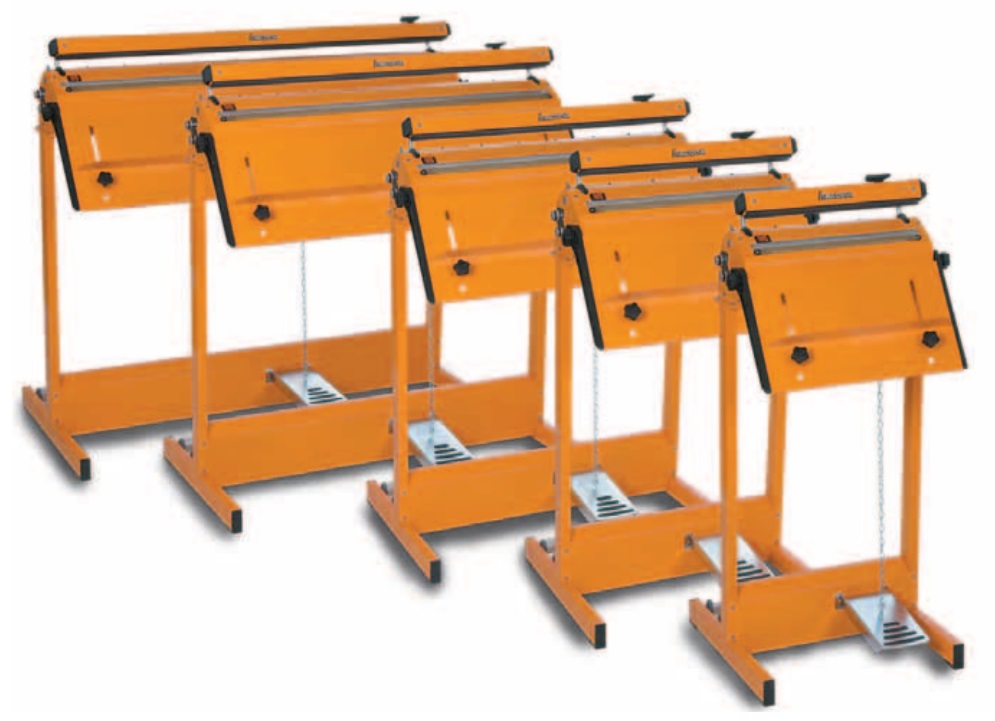

S Sealer Range

S-model

Single 5 mm industrial seal and integral safety film slitter that neatly trims the edge following the sealing cycle.

SD-model

Double 5 mm wide industrial seal giving enhanced seal integrity when packing powdered and liquid products. An integral safety film slitter runs between the two seals, so the upper seal can be independently deactivated, and a single 5 mm seal created with a neatly trimmed edge.

SB-model

Bi-Active upper and lower 5 mm sealing wires double the sealing power and enable secure sealing of films up to 1.2 mm total thickness. Integral safety film slitter.



Basic features of S range sealers

■ Manufactured in six sealing widths - 320, 420, 620, 820, 1020 and 1520 mm.

■ Easy to operate in a variety of applications.

■ Electrically controlled and independently adjustable sealing and cooling times.

■ Gas spring regulated sealing bar opening for safe and smooth operation.

■ Integral sealing wire tensioning system for perfect sealing result.

■ Integral safety film slitter.

■ Designed to seal filled bags and produce bags from rolls.

Modular accessories that can be fitted to the basic machine include bag support, foot pedal, working table and security coding

Accessories for S range sealers

  • Support with foot pedal and film mandrel (maximum roll diameter 320 mm)
  • Sealing Bar Arms
  • Working table with Standard Bag Support (depth: 270 mm)
  • Working table with Extended Bag Support (depth: 570 mm)
  • Aluminium Table Support Arm for pack weights above 5 kg
  • Mobile Film Roll Holder with split roll function for multiple roll sizes
  • Mobile Foot Pedal with flexible connector cable
  • Film Perforator Unit
  • Security Coding
  • Individual code number, 3 mm text height
  • Sealing Wire
  • Wire seals and cuts

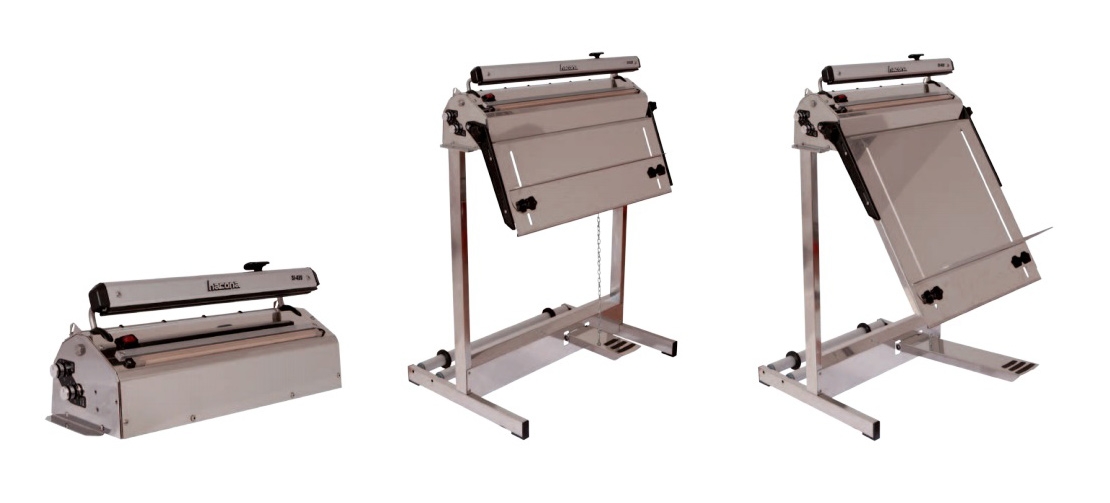

SI Sealers

Stainless Steel

SI impulse sealers have the same basic features as S impulse sealers but are fabricated from polished stainless steel, for use in the following industries:

Food Processing

Pharmaceutical

Chemical

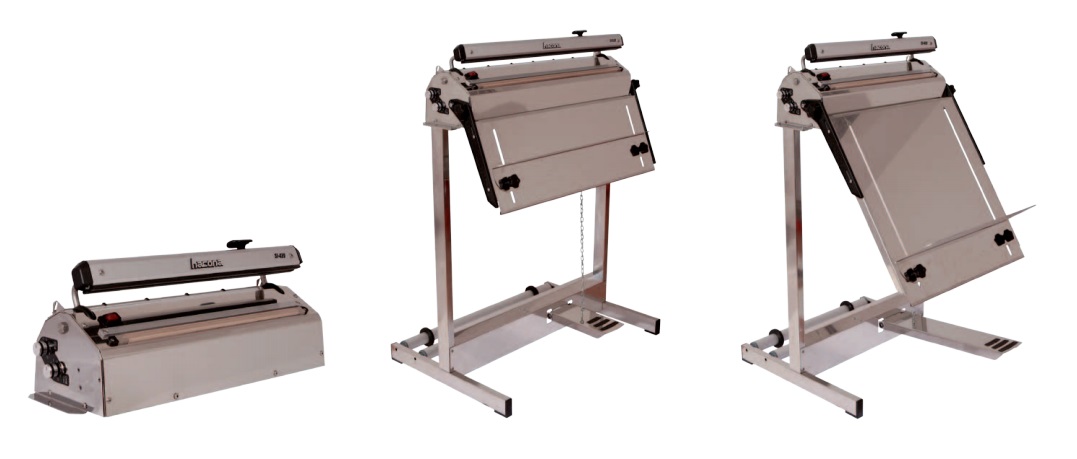

  • Bench mounted
  • Floor mounted with stand, foot
  • Pedal and standard bag support
  • Floor mounted with stand, foot
  • Pedal and extended bag support

SI sealer range:

SI-model

Single 5 mm industrial seal and integral safety film slitter that neatly trims the edge following the sealing cycle.

SID-model

Double 5 mm wide industrial seal giving enhanced seal integrity when packing powdered and liquid products. An integral safety film slitter runs between the two seals, so the upper seal can be

independently deactivated and a single 5 mm seal created with a neatly trimmed edge.

SIB-model

Bi-Active upper and lower 5 mm sealing wires double the sealing power and enable secure sealing of films up to 1.2 mm total thickness. Integral safety film slitter.

Accessories for SI sealers:

  • Support with foot pedal and film mandrel (maximum roll diameter 320 mm)
  • Sealing Bar Arms
  • Working table with Standard Bag Support (depth: 270 mm)
  • Working table with Extended Bag Support (depth: 570 mm)
  • Aluminium Table Support Arm for pack weights above 5 kg
  • Mobile Film Roll Holder with split roll function for multiple roll sizes
  • Mobile Foot Pedal with flexible connector cable
  • Film Perforator Unit
  • Security Coding Individual code number, 3 mm text height
  • Sealing Wire/Wire seals and cuts

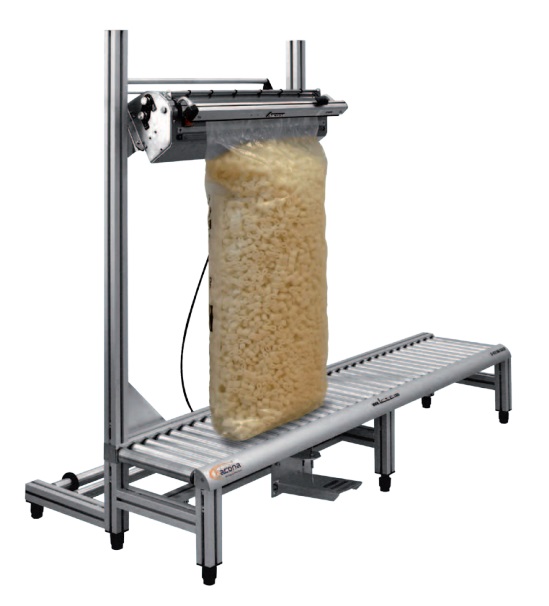

Bag – Sealer

Sealing machine with roller conveyor



This machine is designed to seal heavy bags and can be used as a modular system in different industries.

With the roller conveyor system, it is easy to move bags from the filling station (where product is filled into the bag) to the sealing machine. Maximum load is 50 kg.



Standard model

Bag-Sealer stand and modular roller conveyor system, including standard orange powder coated S sealer in 320, 420, 620, 820 or 1020 mm width.



Roller conveyor

Sealing height can be adjusted infinitely. Rollers are made of aluminium. Fittings and connectors are made of galvanised steel.



Stainless steel bag sealer

Suitable for use with SI stainless steel sealers, with anodised aluminium frame and stainless-steel fittings and connectors.



The Bag-Sealer Roller Conveyor can be used with any S sealer

Technical Data

Standard Roller Conveyor

Conveyor Length

150 mm

Roller Width

350 mm

Maximum Bag Height

1200 mm

Roller Material

Anodised Aluminium

Fittings and Connections

Galvanised Steel

Technical Data

(mm)

SD-420/

       SID-420

SD-620/

SID-620

SB-420/

SIB-420

SB-620/

SIB-620

Maximum Seal length

420

620

400

600

Seal Width

2x5

2x5

5

5

Maximum Film Width

400

600

400

600

Maximum Slitting Length

400

600

380

580

IP Protection

IP 23

IP 23

IP 23

IP 23

Power Supply (V, Hz)

230, 50/60

230, 50/60

230, 50/60

230, 50/60

Power Usage (W)

650

620

650

620

Dimensions Sealer

605x206x255h

805x206x255h

605x206x255h

805x206x255h

Dimensions Sealer Complete

625x553x1085h

825x553x1085h

625x553x1085h

825x553x1085h

Weight of the Sealer (kg)

15.20

18.50

15.20

18.50

Weight of the Sealer Complete (kg)

28.20

33.50

28.20

33.50

Techical Data

(mm)

S-320/

SI-320

S-420/

SI-420

S-620/

SI-620

S-820/

SI-820

S-1020/

SI-1020

Maximum Seal length

320

420

620

820

1020

Seal Width

5

5

5

5

5

Maximum Film Width

310

410

610

810

1010

Maximum Slitting Length

310

410

610

810

1010

IP Protection

IP 23

IP 23

IP 23

IP 23

IP 23

Power Supply (V, Hz)

230, 50/60

230, 50/60

230, 50/60

230, 50/60

230, 50/60

Power Usage (W)

715

600

670

1200

1465

Dimensions Sealer

505x206x255h

605x206x255h

805x206x255h

1005x206x255h

1205x206x255h

Dimensions Sealer Complete

525x553x1085h

625x553x1085h

825x553x1085h

1025x553x1085h

1225x553x1085h

Weight of the Sealer (kg)

11.70

13.20

16.50

23.20

25.95

Weight of the Sealer Complete (kg)

23.60

26.20

31.50

40.10

45.15
