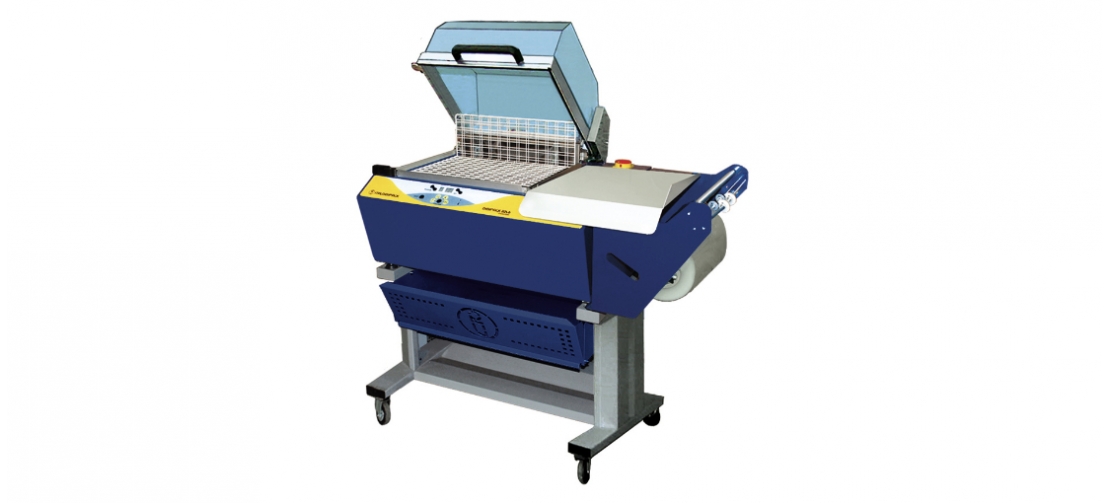

The DIBIPACK 4255 STX is a Thermo-shrink packaging machine characterized by its simplicity and ease of use, offering flexibility in applications and ensuring high production performances.

Features:

• Fully electronic control of the work cycle;

• Automatic adjustment of the welding time (the equipment automatically regulates the welding time according to the speed of packing);

• Storage capacity of 8 operating programs;

• Stand-by function after some inactivity time (to be defined);

• Possibility to start the retraction process at the end of welding;

• Device that allows the enclosure to be closed independently during the retraction process;

• Cycle start command through a proximity switch;

• Possibility of opening the bell when the fan stops in order to eliminate the outflow of hot air at the end of the working cycle;

• Bell opening system through a gas damper;

• "Counter-parts" system;

• Waste collection system - on request;

• The equipment works with retractable PVC film sleeve and low retraction polyolefins.


Max. Welding Area

420 x 550 mm

Maximum Product Height

200 mm

Impulse Welding System

Lower Blades

Productivity

4-6 Cycles/Min

Electric Supply

230 V - 1 Ph

Weight

87 kg

Dimensions

1270 x 780 mm
