Equipment

Shrink Wrap Machines

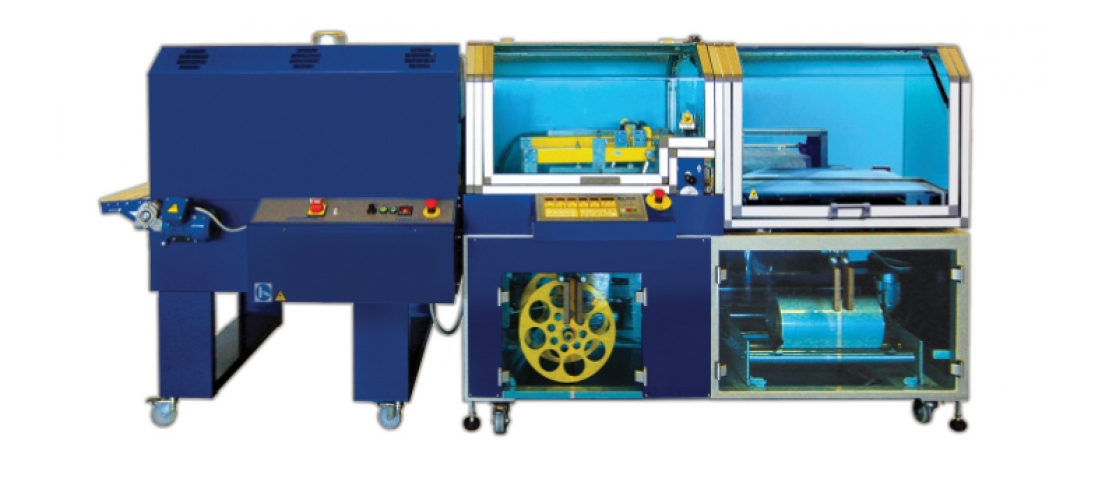

Packaging Machine MECPACK FIVE STAR

The MECPACK FIVE STAR thermo-retractable machine is known for being a compact and robust automatic equipment.

Main Features:

  • Electronic control panel with touch sensitive and intuitive
    operator interface to set and control all the machine functions
    in the best and simplest way (conceived by R&D Italdibipack);
  • Possibility to memorize several working cycles with personalized parameters;
  • Hot sealing bars (transversal and longitudinal) controlled by two independent electronic thermo-regulators;
  • Working cycles and parameters setting controlled by microprocessor;
  • Automatic pack bag length determined through horizontal or
    vertical photo-eye depending from the product shape;
  • Multi-pack function (packing of more units in line);
  • Infeed conveyor belt with a continuous or synchronised
    movement with the sealing bar;
  • Counter.

Productivity

> 2400 Cycles/Hour

Dimensions

1750 x 1160 x 1500 mm

Max. Welding Area

600 x 500 mm

Min. Welding Area

90 x 90 mm

Maximum Product Height

170 mm

Compressed Air

6 bar

Consumption and Pression

0,5 NI/cycle

Electric Supply

230 - 380 V3 Ph

Power

1,5 Kw

Dimensions of the Tunnel

1900 x 850 x 1360 mm

Length of the Tunnel

700 mm

<p><strong>The DIBIPACK 4255 STX is a Thermo-shrink packaging machine characterized by its simplicity and ease of use, offering flexibility in applications and ensuring high production performances.</strong></p> <p><strong>Features:</strong></p> <p>• Fully electronic control of the work cycle;</p> <p>• Automatic adjustment of the welding time (the equipment automatically regulates the welding time according to the speed of packing);</p> <p>• Storage capacity of 8 operating programs;</p> <p>• Stand-by function after some inactivity time (to be defined);</p> <p>• Possibility to start the retraction process at the end of welding;</p> <p>• Device that allows the enclosure to be closed independently during the retraction process;</p> <p>• Cycle start command through a proximity switch;</p> <p>• Possibility of opening the bell when the fan stops in order to eliminate the outflow of hot air at the end of the working cycle;</p> <p>• Bell opening system through a gas damper;</p> <p>• "Counter-parts" system;</p> <p>• Waste collection system - on request;</p> <p>• The equipment works with retractable PVC film sleeve and low retraction polyolefins.</p>

Packaging Machine DIBIPACK 4255 STX

<p><strong>Semiautomatic thermo-retractable equipment developed for operation in automatic mode, with an operator to place the products in the welding zone. All the remaining packaging cycle is carried out autonomously.</strong></p> <p>The ESPERT 5040 EV is the ideal machine for productions up to 900 cycles per hour.</p> <p>The closing of the welding ring is performed by a pneumatic cylinder. The welding mat moves, thus transferring the product to be packed into the oven to effect retraction.</p> <p>It is possible to control the welding time and temperature, as well as regulate the height of the welding plane according to the dimensions of the product.</p> <p>The safety of operator's hands is ensured through an efficient safety system installed in accordance with European CE marking directives.</p> <p>The retraction tunnel is equipped with curtains that regulate the airflow inside the furnace to obtain packages with excellent retraction results even in the most difficult situations.</p> <p><strong>Main features:</strong></p> <p>• Innovative design;</p> <p>• Robust construction of high quality;</p> <p>• High production performances;</p> <p>• Pneumatic operation;</p> <p>• Two independent carpets: one in the welding zone and the other in the retraction tunnel;</p> <p>• Low consumption and high efficiency retraction oven;</p> <p>• Fully automatic cycling;</p> <p>• Timer control of the rise and fall of welding bars, welding time and carpet advance time;</p> <p>• Available options: Waste tank and return rollers.</p> <p>The machine works with retractable PVC film sleeve and polyolefin film</p>

Semiautomatic Packaging Machine ESPERT 5040 EV

<p><strong>The DIBIPACK 6064 heat-shrink packaging machine has been developed to meet the packaging needs of large products.</strong></p> <p>This equipment is ideal for the packaging of large products, such as frames, paintings, panels, etc.</p> <p>The DIBIPACK comes equipped with a double device that keeps the bell closed during the retraction process and a command that starts the work cycle through a proximity switch. The bell is kept closed during the working cycle, thus allowing the operator to prepare the next piece for packaging. It is also equipped with two fans for greater air circulation during film retraction.</p> <p>The machine works with retractable PVC film sleeve and polyolefin.</p>

Packaging Machine DIBIPACK 6084
