Sleeve-Wrapping Machines

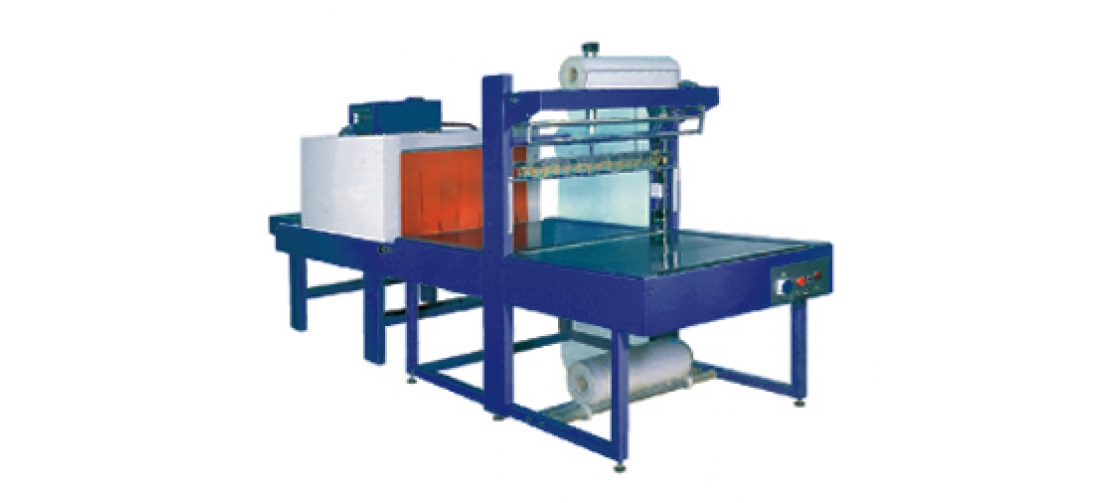

A sleeve-wrapper with automatic feeding to make even more multipacks of different size of various products (bottles, vases, jars, pots, cans, phials, cases etc) and/or to protect boxes integrating and/or replacing the use of carton boxes at end-of-line with great management advantages.

The machine works in a very simple way: a pneumatic pusher drives the products from the loading area towards the sealing area. Then a transversal sealing-bar (that has a pneumatic movement and temperature is electronically controlled) cuts and seals the film.

At this point the wrapped product enters the tunnel for shrinking. Ideal for medium-high outputs.

Features:

  • Automatic feeding
  • Double-rolls system
  • Sealing time electronically adjustable
  • Sealing-bar with two sealing blades and one teflon-coated cutting blade controlled by electronic thermo-regulator ; pneumatic movement
  • Product detected by a system of photo-eyes
  • the wrapped product stays on a plate behind the sealing area till the outcoming wrapped product pushes it onto the tunnel belt conveyor that is always running
  • In-line in-feed belt conveyor running with fixed speed
  • Tunnel steel zinc-coated mesh belt conveyor
  • Tunnel air heating by finned resistances controlled by an electronic thermo-regulator
  • Closed and forced air circulation with air flow adjustable by flaps in order to have the best shrinking
  • Cooling fan at the tunnel exit included
  • Internal tunnel parts made by steel zinc-coated
  • External powder painting
  • Discharging idle roller conveyor included
  • Motorized top and bottom film-unwinding

Options:

  • Vertical rollers to compress the film excess at the tunnel exit
  • After-sealing-bar top-clamp to block unstable products
  • Frequency AC engine controller for tunnel belt conveyor
  • Tunnel belt conveyor 800 mm longer for wrapping bottles without any carton tray

The machines works with single-wounded (flat) LLDPE

Machine made according to CE rules.


Technical Data

Dimensions

4300 x 1300 x 2000 mm

Tunnel Entrance Dimension

900 x 500 mm

Tunnel Width

1400 mm

Dimensions of Cross Welding

900 mm

Welding Bar Opening

410 mm

Max. Depth of Product

400 mm

Productivity

> 10 Pieces/Minuto

Max. Coil Height

880 mm

Motorized Coil System

Upper and Lower Coil

Speed of the Conveyor Belt

4 m/Min

Compressed Air

6 bar

Electric Supply

380 V 3 Ph + N

Power

26 Kw
