Equipment

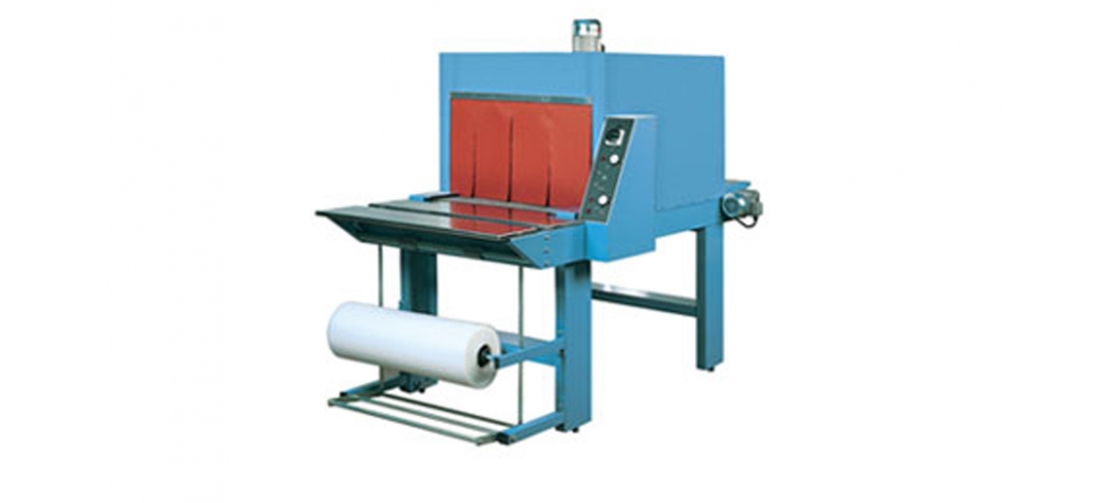

Sleeve-Wrapping Machines

Compact, innovating, robust and very easy to use machine; it can sleeve-wrap a wide range of products (bottles, jars, pots, tins, cans, cases, boxes) in a simple and inexpensive way.

Ideal to seal large boxes, to wrap single out-of-standards pieces integrating and/or replacing the use of corrugated-carton boxes with great economical, logistical and image advantages.

Features:

  • Easy and quick size change-over;
  • In case of “multipack" (several products wrapped up together) it is better to put a carton-tray under the package;
  • Temperature electronically controlled;
  • Air heating inside the tunnel through electric finned resistances;
  • Forced and closed air circulation: it is possible to set the air flow through adjustable compartments in order to get the best results in film-shrinking;
  • Zinc-coated mesh belt conveyor inside the tunnel;
  • Film-cutting through an impulse warmed wire operated by a manual lever;
  • The machine works with monolayer LLDPE.

Machine made according to CE rules.


Technical Data

Dimensions

1900 x 1100 x 1700 mm

Tunnel Mouth Dimension

700 x 440 mm

Tunnel Width

1150 mm

Dimensions of Cross Welding

650 mm

Welding Bar Opening

350 mm

Max. Depth of Product

330 mm

Max. Coil Height

650 mm

Productivity

< 8 Peças/Minuto

Electric Supply

230/380 V 3 Ph

Power

10 Kw
