Equipment

Sleeve-Wrapping Machines

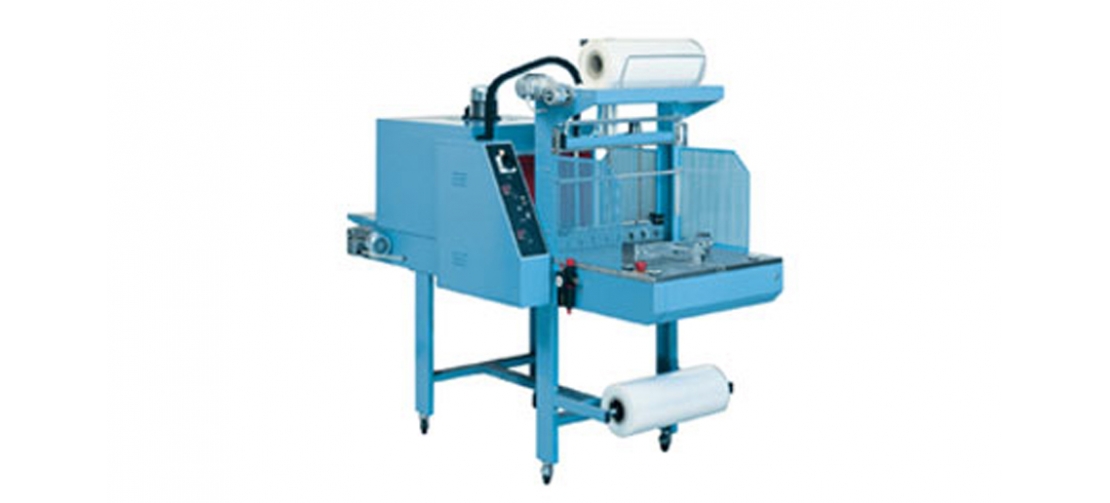

Semiautomatic Sleeve-Wrapping Machine ECOFARD 500

The most innovative and practical semiautomatic sleeve-wrapping machine able to package a wide range of products (bottles, vases, jars, pots, cans, phials, cases etc) and/or to protect boxes integrating and/or replacing the use of carton boxes at end-of-line with great management advantages.

The machine works in a very simple way: a pneumatic pusher drives the products from the loading area towards the sealing area. Then a transversal sealing-bar (that works with pneumatic movement and temperature is electronically controlled) cuts and seals the film.

At this point the product enters the tunnel for shrinking. Ideal for small-medium productions.

Features:

  • Sealing time electronically adjustable;
  • Movement of the belt conveyor inside the tunnel is synchronus with that of the sealing bar in order to sleeve-wrap unstable products without a tray, too;
  • Steel zinc-coated mesh belt conveyor inside the tunnel;
  • Internal tunnel parts made by steel zinc-coated;
  • Air heating by finned resistances controlled by an electronic thermo-regulator;
  • Closed circulation of forced-air - air flow adjustable by flaps in order to have the best shrinking;
  • Discharging belt conveyor included;
  • External powder painting.

Machine made according to CE rules.

Dimensions

1900 x 850 x 1680 mm

Dimensions of the Tunnel Entrance

480 x 340 mm

Width of the Tunnel

730 mm

Dimensions of Cross Welding

500 mm

Welding Bar Opening

240 mm

Max. Depth of Product

300 mm

Max. Coil Height

480 mm

Motorized Coil System

Top Coil

Conveyor Belt Speed

Continuous

Compressed Air

6 bar

Electric Supply

230/380 V 3 Ph

Power

6,5 Kw

<p><strong>Compact, robust and practical MANUAL sleeve-wrapper able to sleeve-wrap a wide range of products</strong><strong> ( bottles, jars, pots, tins, cans, cases, boxes) in a simple and unexpensive way. </strong></p> <p>Ideal to seal large boxes, to wrap single out-of-standards pieces integrating and/or replacing the use of corrugated-carton boxes with great economical , logistical and image advantages.</p> <p><strong>Features:</strong></p> <ul> <li>Easy and quick size change-over;</li> <li>In case of “multipack" (several products wrapped up together) it is better to put a carton-tray under the package;</li> <li>Temperature electronically controlled;</li> <li>Air heating inside the tunnel through electric finned resistances;</li> <li>Forced and closed air circulation: it is possible to set the air flow through adjustable compartments in order to get the best results in film-shrinking;</li> <li>Zinc-coated mesh belt conveyor inside the tunnel;</li> <li>Film-cutting through an impulse warmed wire operated by a manual lever.</li> </ul> <p>Machine made according to CE rules.</p>

Manual Sleeve-Wrapper ECOPAC 500

<p><strong>Compact, innovating, robust and very easy to use machine; it can sleeve-wrap a wide range of products (bottles, jars, pots, tins, cans, cases, boxes) in a simple and inexpensive way. </strong></p> <p>Ideal to seal large boxes, to wrap single out-of-standards pieces integrating and/or replacing the use of corrugated-carton boxes with great economical, logistical and image advantages.</p> <p><strong>Features:</strong></p> <ul> <li>Easy and quick size change-over;</li> <li>In case of “multipack" (several products wrapped up together) it is better to put a carton-tray under the package;</li> <li>Temperature electronically controlled;</li> <li>Air heating inside the tunnel through electric finned resistances;</li> <li>Forced and closed air circulation: it is possible to set the air flow through adjustable compartments in order to get the best results in film-shrinking;</li> <li>Zinc-coated mesh belt conveyor inside the tunnel;</li> <li>Film-cutting through an impulse warmed wire operated by a manual lever;</li> <li>The machine works with monolayer <strong>LLDPE.</strong></li> </ul> <p>Machine made according to CE rules.</p>

Manual Sleeve-Wrapper ECOPAC 650

<p><strong>A sleeve-wrapper</strong> <strong>with automatic feeding to make even more multipacks of different size of various products</strong> (bottles, vases, jars, pots, cans, phials, cases etc) <strong>and/or to protect boxes</strong> integrating and/or replacing the use of carton boxes at end-of-line with great management advantages.  </p> <p>Two different models are available: <strong>compact (MB)</strong> where the tunnel is connected with the sealing area, and <strong>sealer-plus-tunnel (BB) </strong>where the sealing area is independent from the tunnel.</p> <p><strong>ECOFARD 700 is compact</strong><strong>, </strong> the tunnel is connected with the sealing area and the conveyor belt is sincronized with the sealing conveyor belt area.  The machine works in a very simple way: from the loading area the products move towards the sealing area, where a transversal sealing-bar (that has a pneumatic movement and temperature is electronically controlled) cuts and seals the film. At this point the wrapped product enters the tunnel for shrinking. <strong>Ideal for medium-high outputs</strong>.</p> <p><strong>Features:</strong></p> <ul> <li>Automatic feeding;</li> <li>Double-rolls system;</li> <li>Sealing time electronically adjustable;</li> <li>In MB models movement of the tunnel belt conveyor synchronized with that of the sealing bar in order to sleeve-wrap also unstable products without a tray;</li> <li>In BB models the wrapped product stays on a plate behind the sealing area till the outcoming wrapped product pushes it onto the tunnel belt conveyor that runs continually;</li> <li>Cooling fan at the tunnel exit included;</li> <li>Tunnel steel zinc-coated mesh belt conveyor;</li> <li>Air heating by finned resistances controlled by an electronic thermo-regulator;</li> <li>Closed and forced air circulation with air flow adjustable by flaps in order to have the best shrinking;</li> <li>Internal tunnel parts made by steel zinc-coated;</li> <li>External powder painting;</li> <li>Discharging idle roller conveyor included ;</li> </ul> <p><strong>Options:</strong></p> <ul> <li>Vertical rollers to compress the film excess at the tunnel exit;</li> <li>After-sealing-bar top-clamp to block unstable products;</li> <li>Frequency AC engine controller for tunnel belt conveyor;</li> <li>Motorized bottom film-unwinding;</li> <li>Tunnel belt conveyor 800 mm longer for wrapping bottles without any carton tray.</li> </ul> <p>The machines works with single-wounded (flat) <strong>LLDPE</strong></p> <p>Machine made according to CE rules.</p>

Semiautomatic Sleeve-Wrapping Machine ECOFARD 700
