Vacuum Packaging Machines

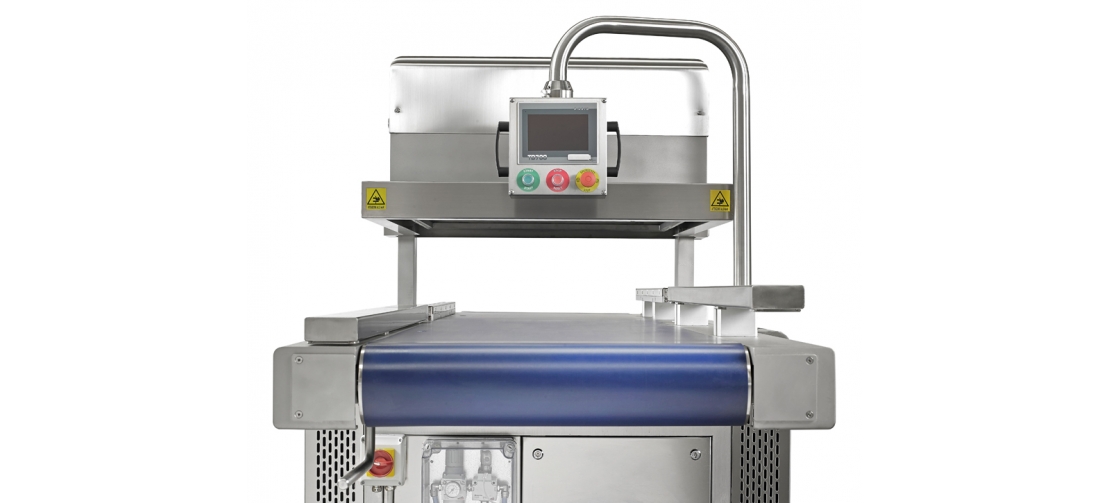

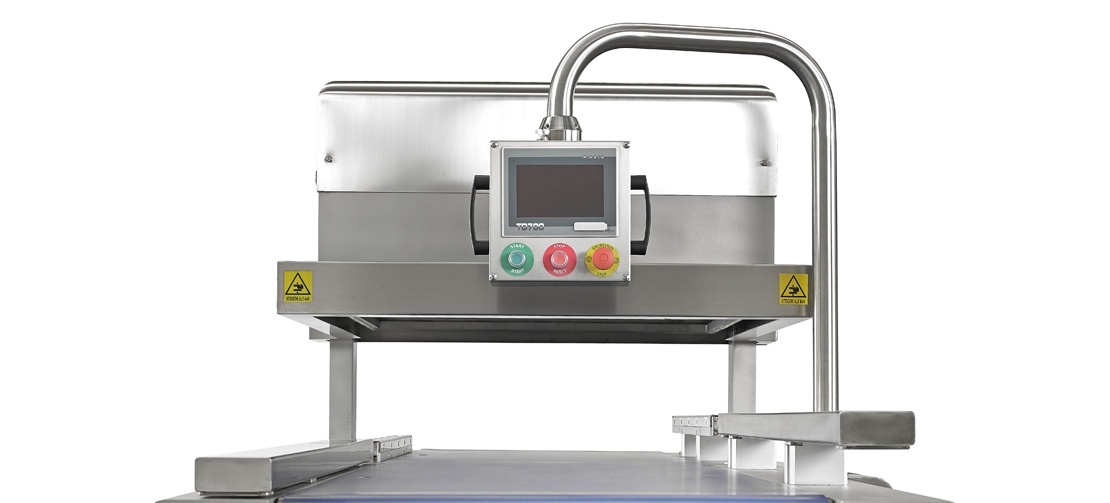

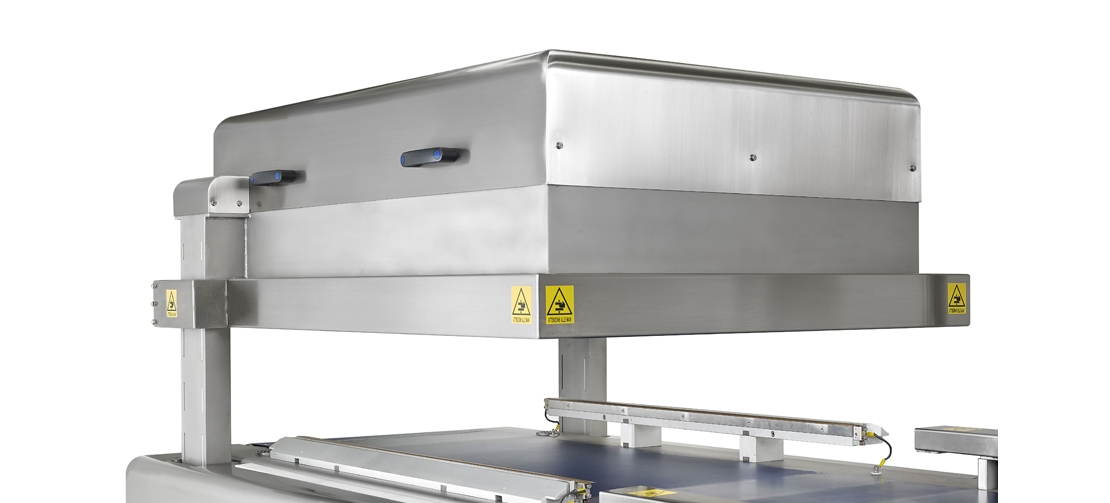

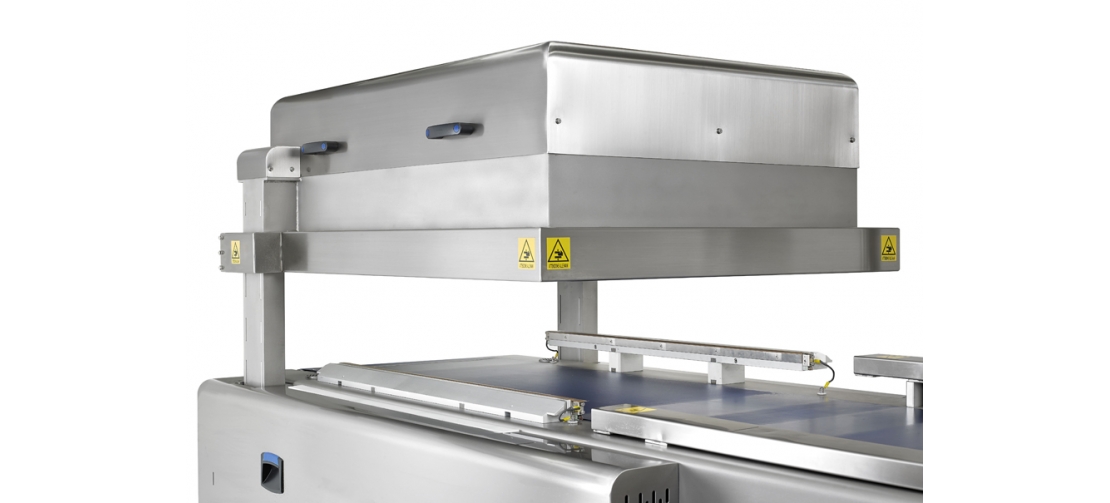

The BMR 10 - 65, from BMR series belt vacuum packaging machines, is a fully automatic and high technological equipment for the vacuum packaging in bags of products such as:

  • Cuts of meat of any kind
  • Mortadella, hams, bacon, cured meats of any kind cheeses
  • Any other element that can be vacuum packed

The BMR series belt vacuum packaging machines are particularly versatile and as such are well suited to inclusion within the line combined with a shrink tunnel or automatic packaging lines. They offer a mix of productivity and reliability ideal for any business.

The innovative design has been specifically created to ensure maximum efficiency during production and at the same time maximum simplicity for operations of cleaning and sanitising.

Completely made of stainless steel they are particularly suitable for very aggressive environments and in the packaging of fresh meat. All the applied solutions, the design of the machine and the materials used are the expression of the long experience and the continuos research for the maximum reliability. In the BMR line, the sealing bars adjustable height, makes the machine even more versatile.

Technical Data

Main frame

stainless steel AISI 304

Loading Plane

stainless steel AISI 304

Vacuum Chamber

stainless steel AISI 304

Useful chamber height

250/400 mm

Sealing bars

1/2 x 1000 mm

Sealing bars

650 mm

Sealing Height

45/120 mm

Sealing system

mono-active / bi-active

Conveyor Belt Speed

0/40 Mt/min


1-2 cycle/min

Electric supply

400V 3PH+N+PE

Pneumatic supply

6/8 bar - dry and micro-filtered air

Air consumations

15/25 Nl/min


900 kg

Suggested vacuum device

1x 300 mc/h - 7,5 KW


2970x1260x1900h mm
