Equipment

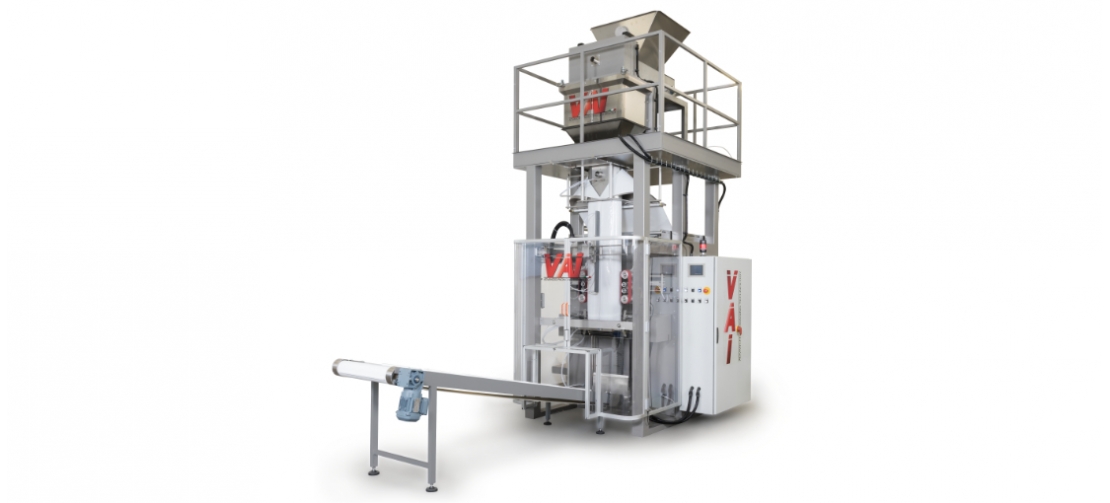

Vertical Packaging Machines

Packaging and weighing line for dry and solids products such as short pasta, rice, sugar and flour.

This weighing and dosing equipment contains recent technology and know-how for specific products and is suitable for those who wish to use plastic film or laminated film with paper. The V5/10 machines are made for the automation of packaging lines using any type of flexible material.

In general, it is possible to pack all the products that need paper packaging for shelf-life, marketing or other technical reasons.

The obtained pack can be used in the food (flour, sugar, salt, special ranges of pasta or biscuits) and non-food sector (pellet, cement, mortars, petfood, coal, feedstuffs, seeds). The packs can be printed up to 8 colours and are available in different size from 0,5 or 1 Kg up to the big sizes of 30 Kg. Furthermore, it is possible to produce packs with double square bottom or apply handles for a more comfortable transport.


Voltage

VOLT 400 AUX. 24 Volt HZ 50 3 PHASES + NEUTRAL + GROUND

Installed Power

KW 10

Air Consumption

650 NL/MIN 6/8 BAR

Electrical Engines

SIEMENS

Management PLC

SIEMENS S7-300

Pneumatical Components

SMS - FESTO

Parts in Contact with the Product

STAINLESS STEEL AISI 304

Max. Volume

20 LT

Max. Bag Size

410 mm x 650 h mm

Strip Max. Size

870 mm
