Equipment

Vertical Packaging Machines

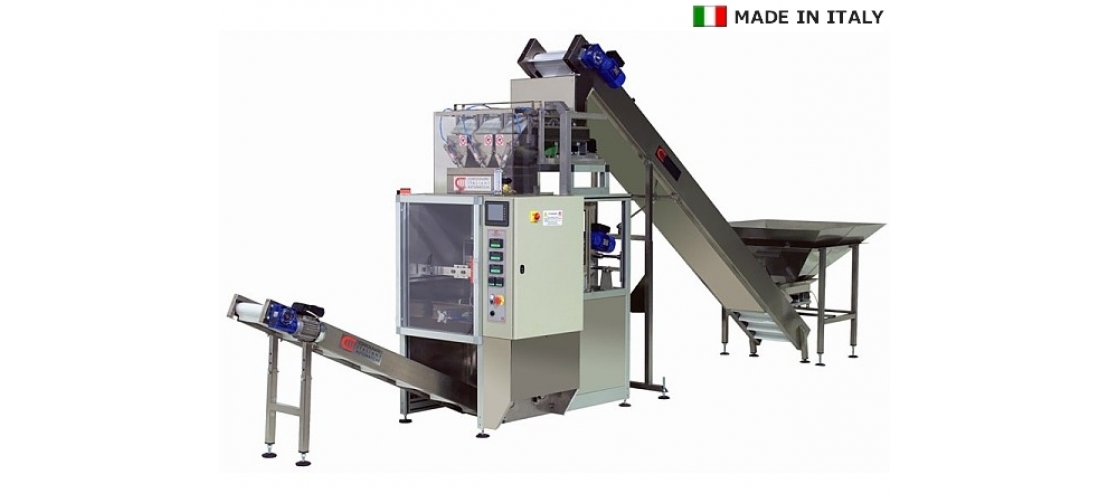

AUTOMATIC ELECTRONIC WEIGHING AND PACKAGING MACHINE WITH 1, 2 OR 3 WEIGHING HEADS

Suitable for weighing and packing different kind of granular products up to kg 2 starting from the reel. Wiring mastered by PLC. Machine's functions adjustable by touch-screen. A wide choice of options available on demand.
Max bag size: mm 240 x adjustable height.

Our automatic packaging machine BG 37 IM can now be used for the packaging of roasted coffe beans. There is no need to modify the machine thanks to the use of an innovative film equipped with a patented flat degassing valve.
This innovative packaging process for coffee beans allow savings from different points of view:

- The same machine can be used for the packaging of different granular products without any modification (rice, coffee beans, nuts etc.);
- The change of package size do not require modifications of the machine, especially in the packaging of coffee beans;
- For the packaging of coffee beans there is no need of further accessories such as valve applying units, resulting in a considerable saving in the cost of the plant;
- Continuous saving through the packaging prcess since the film with flat degassing valve is less expensive than the traditional with plastic valve.

Features:

  • Ideal for weighing and packing granular products of various types up to 2 kg in weight, with PLC-managed electrical system;
  • All functions are editable via touch screen.

Max bag length

No limit

Max bag width

250 mm

Max film's width

540 mm

Max external film's diameter

270 mm

Mecanical speed/minute

35

Max bar pressure

7

Power

Monophase 220V

Dimensions

1000x1500x2100h mm

Weight

450 kg
