Equipment

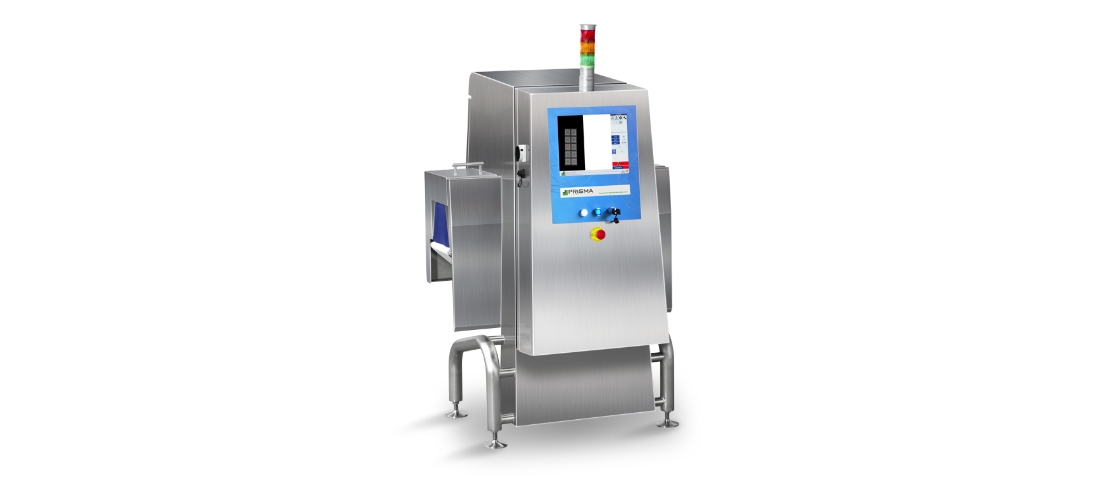

X-Ray Inspection Equipment

X-ray inspection equipment for food products, with a maximum capacity of 5,000 gr and dimensions up to 235 x 150 mm.

At the highest level in terms of performance, longevity, safety and design, it presides with maximum effectiveness over critical control points and is the best guarantee for the protection of your brand, Solution for inspecting packaged products.

High Quality Generator and Sensor

These X-Ray Inspection equipment have high gamma generators and sensors. They operate using low energy radiation for better detection performance, less maintenance, reduced consumption and safety for the operator as well as the end user.

Product and Operator Safety

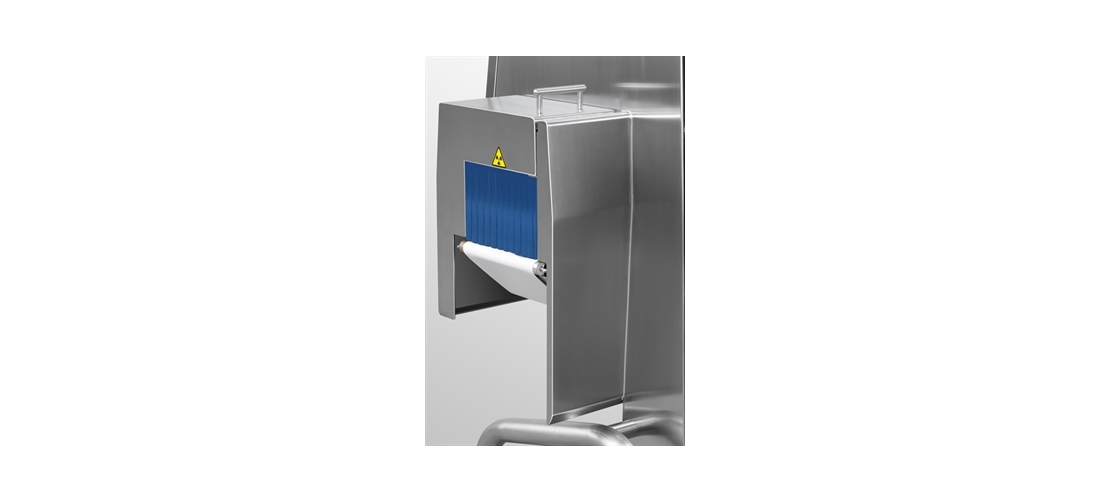

The equipment is provided with three rows of protection curtains, the emissions are certified below 1 μSv/h and completely contained inside the equipment.

Three safety switches, an emergency stop button and a key switch, which immediately shut down the x-ray generator. It also has on-screen warnings, a start/stop switch, visual and acoustic alarms, and an internal cooling system.

The control panel and electronics, located at the front of the unit, are completely separate from the X-ray generator, positioned at the back of the unit.

Stable, Safe and Easy-Maintenance Mechanics

Simplified design combining stability, easy sanitisation and low economic impact. TPU conveyor belt, approved for food use (FDA and EU). The quick release system of the conveyor belt allows for its quick replacement without the need to remove the equipment from the production line.

Advanced and Intuitive Electronics

Intuitive interface, easy operation as well as program definition. 15'' colour digital touch screen, IP69 rated, with 3-level password-protected access, self-check function, event history and rejection log. All models can be equipped with Ethernet and USB interfaces for data transmission.

Quality

Equipment made in Italy, manufactured entirely in stainless steel, capable of withstanding intense washing cycles, which can be done extremely quickly thanks to the quick-disassembly plates.

Documentation and Standards Compliance

Thanks to the certified safety levels of these systems, no "classified areas", no classification of personnel as "exposed workers", and no periodic physical surveillance is required. This equipment complies with ISO-FDA HACCP, major approvals and customer guidelines and standards (including but not limited to BRC and Marks & Spencer).

Return on Investment

Prisma's range of equipment allows for major savings, drastically reducing product waste, false detections or production stoppages. Everything translates into a fast return on investment, thanks to the high quality of the materials and the durability of the state-of-the-art equipment.


Technical Data

Weight Limit

Up to 5,000 gr

Linear Speed

Up to 65 m/min

Cadence

Up to 600 ppm

Power supply

230 V 50/60 Hz single phase

Electric consumption

1.500 W

X-ray generator

100 W

X-ray sensor

250 mm

X-ray emission

Less than 1 µSv/h totally contained within the structure

Climatic Environment

5ºC to 35ºC
