Equipment

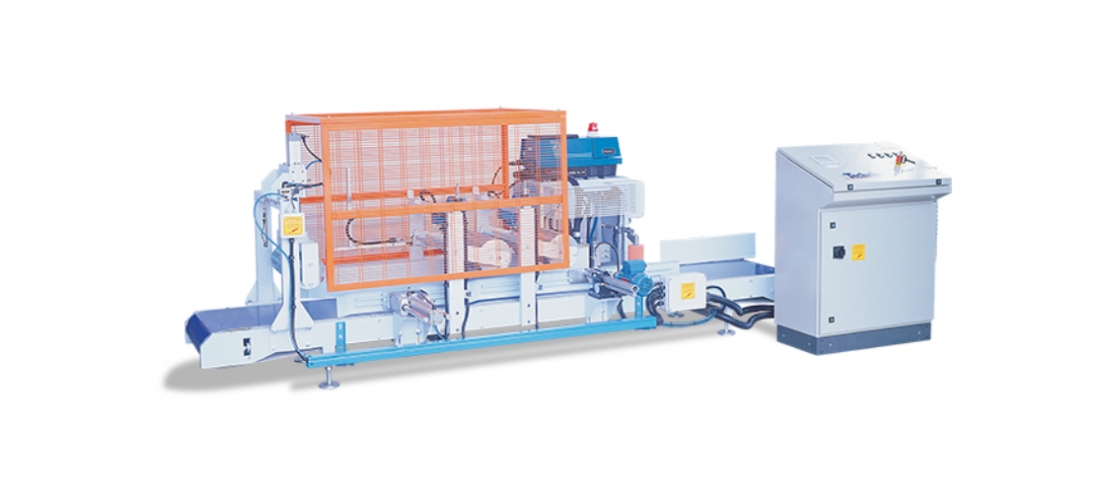

Automatic Lines for Valve Bags

The “bag valve sealing” automatic system has been designed, constructed and patented to seal bags valve to have completely sealed bags in full compliance with the H.A.C.C.P. standard provisions.

The labeller, in its standard version, is equipped with the following devices:

  • Reel-holding clutched group with paper presence check sensor: it can process Kraft paper reels with 70 g/m2 thickness and 300 mm Ø, for an average output of 5000 labels;
  • Motorised driving group to unwind paper on the label clamping holed plate;
  • Feeding group of the label clamping plate with “Hot Melt” gluer for the correct batching of the glue on the label;
  • Pneumatically controlled cutting unit for a calibrated cut of the paper label. The cutting action is synchronised to the feeding group action and a moment before the arrival of the full bag to be labelled that allows for the application of the label on the valve with glue at the right temperature;
  • Sponge label pressing roll to press the label according to the bag shape.
