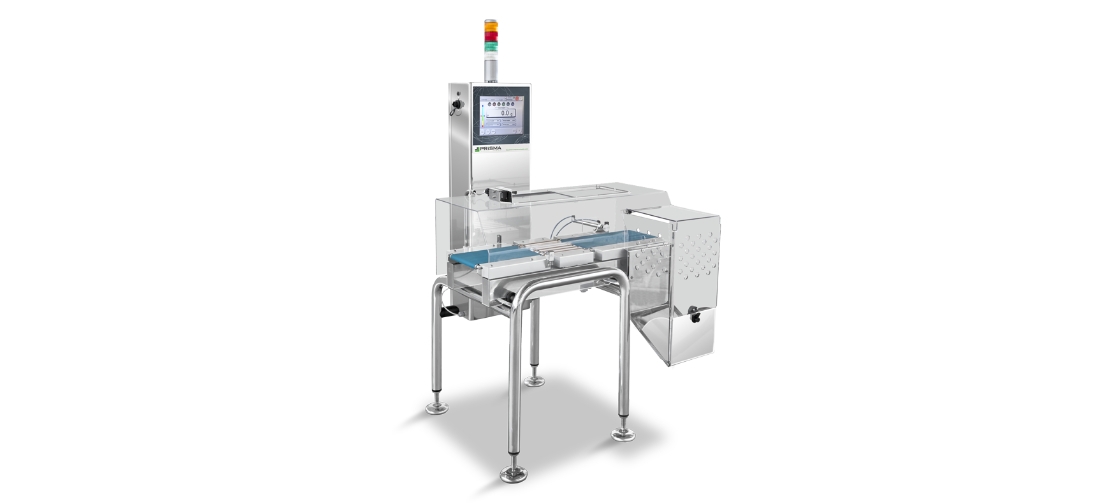

This Checkweigher designed for the Pharmaceutical Industry, works through electromagnetic cells, a feature that allows it to reach extremely high levels of precision (± 0.05 g), even at high speeds.
It is the ideal equipment to verify with extreme precision small format, high value products, such as boxes, tubes, among others.
Electromagnetic Compensation Weighing System
This technology guarantees maximum reliability, ensuring weighing accuracy and without any problem of resistance to external factors such as variations in temperature and humidity. It is the right equipment for high value products, where small variations mean high costs for the company.
Advanced and intuitive electronics
Digital touch screen, with auto-calibration device and storage for 200 weighing programs. It includes an Ethernet connection and 2 RS232 C ports. Access is protected by a multi-level password, so as to reduce human error to a minimum.
Stable, safe and easy-to-maintain mechanics

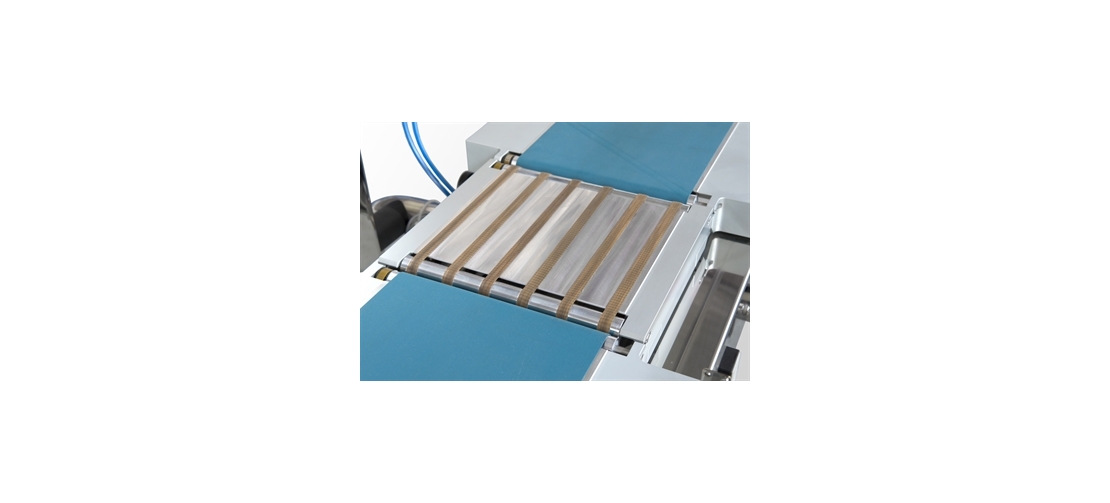

The Weight Controller has 3 conveyors, feeder, scale and feeder, supported by a stainless steel structure, which gives stability to the equipment, eliminating vibrations and disturbances.
Equipment made in Italy, manufactured entirely in stainless steel, capable of withstanding intense washing cycles, which can be carried out extremely quickly thanks to the quick-disassembly plates.
Compliance with Standards
This equipment complies with ISO-FDA HACCP, major pharmaceutical directives (including but not limited to: OIML R51 - MID directives, FDA approvals, FAT/SAT IQ/OQ, CFR 21 part 11) and meets customer guidelines and standards (including but not limited to: BRC and Marks & Spencer).
Return on Investment
Prisma's range of equipment allows for major savings, drastically reducing product waste, false detections or production stoppages. Everything translates into a fast return on investment, thanks to the high quality of the materials and the durability of the state-of-the-art equipment.
Weighing rangeUp to 600 gr
Decimal places0,01 gr
Linear SpeedUp to 100 m/min
CadenceUp to 500 ppm
Accuracy± 0.05 gr

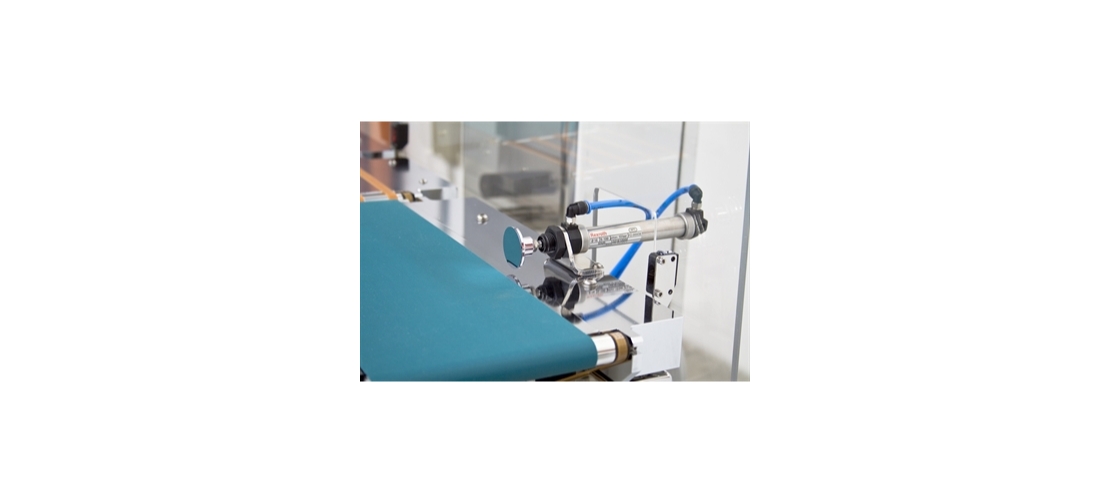

Compressed air consumption (product rejection)1 Nl
Power supply230 V 50/60 Hz single phase
Electric consumption700 W
Climatic Environment5ºC to 40ºC
