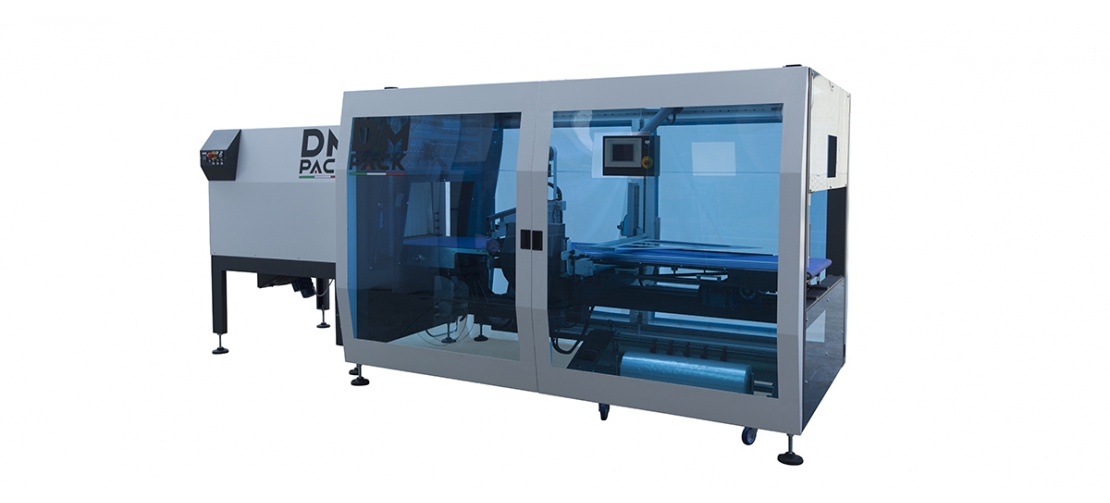

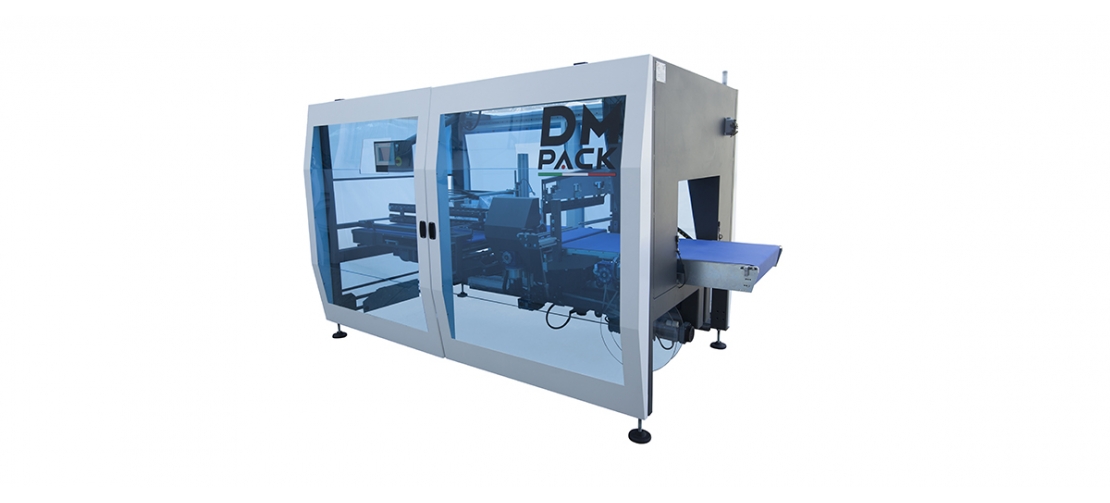

Continuous sealing packaging machine STAR EVO

New generation and design, side sealing packaging machine, super-accessible and simple to use. Excellent for packaging and total closure of various types of products with heat shrinking or other film, centre-folded or flat film.

Great flexibility of the machine, thanks to the possibility of having it in various sizes with a fixed, intermittent or box motion bar, with simple sealing, with Euroforo or easy opening. it covers a vast range of product packaging. For a new and simpler way of working and increasingly elevated performance.

The flexibility of a 3-belt side sealing machine and the possibility of working with flat or centre-folded film. For tighter packing and considerable finishes.

Innovative 3-belt side sealer packaging machine.

General features

STAR EVOLUTION.

• 3-belt, side sealer packaging machine. Compact and simple (500 version with built-in tunnel: 3 m x 1.2 m)
• Highly flexible, it covers an increasingly extensive range of packaged products: cosmetics, pharmaceutical, plastic, food etc.
• Suitable for single packaging or multipacked products manually or automatically loaded by using additional systems (stackers, multipack formers, diverters, etc.).
• Huge savings in film and energy thanks to the possibility of producing tight packs.
• Excellent design for maintenance and cleaning. Available in painted and stainless-steel version.
• Possibility of creating a customised machine choosing various devices from the optional list.
• Connectors to allow prompt connection to reduce the operator’s working time to a minimum.
• Movable central conveyor to work with products that are always centred. There is no need to move the tunnel chamber or the infeed belt.
• Electric box on view, positioned up high, perfectly accessible for the operator.
• Standard products passage height 300 mm
• High flexibility
• Mechanics on view

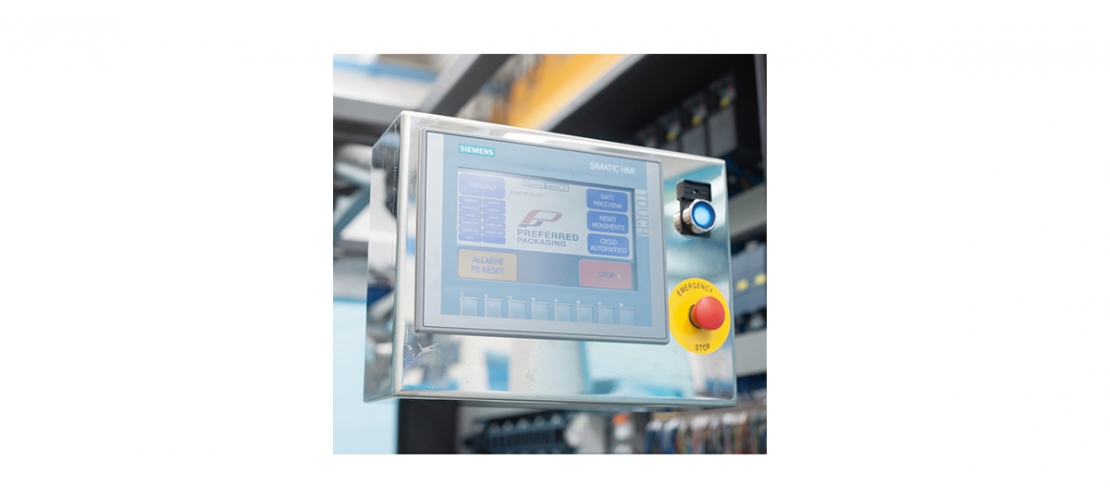

• Intuitive touch screen for simple format change. The touch screen can rotate in 3 different positions to allow the operator to work on all sides of the machine: front, back and side.

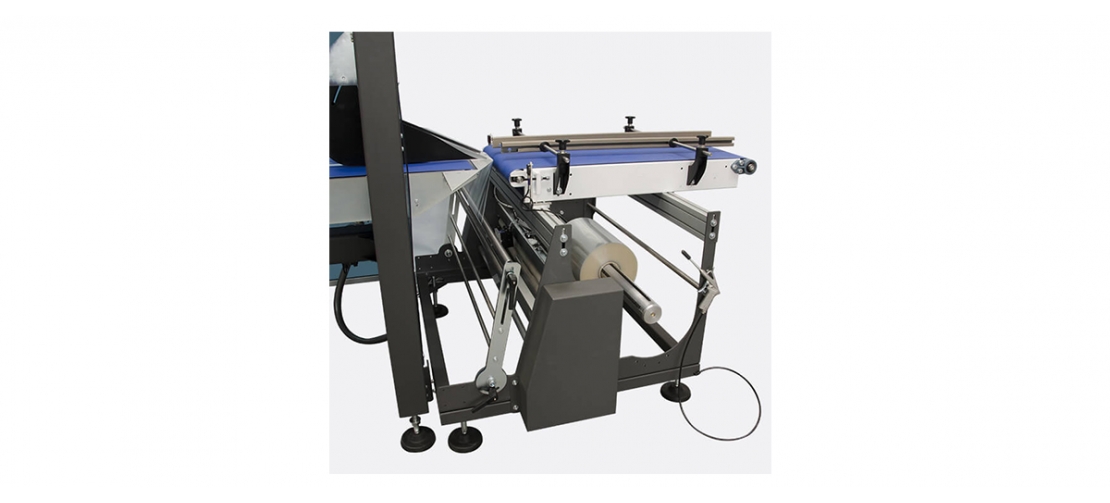

• Removable reel unwinder for fast passage of the film and rapid change. The machine can work with flat and centre folded film.
• Electric box on view, positioned up high, perfectly accessible for the operator.
• Standard products passage height 300 mm
• High flexibility
• Mechanics on view
• Top or bottom sealer (reel from beneath or above) instead of the side reel.

Specific features

STAR EVOLUTION design available in COMBO format (with compact tunnel) or separate tunnel.
'BABY' version available with bar width 300 mm; version 500, 600, up to the widest version, 800 mm, with standard height of 300 mm or with optional up to 450 mm. Versions 500 & 600 are also available in the "COMBO" version with built-in tunnel. Thanks to the optional and "double" sealing systems, you can work with all the types of film available on the market: polyolefin, polypropylene, flat or centre-folded film, neutral or printed.
Available in intermittent or box motion version based on customer's speed requirements or with "rotative" bar for high speeds, even in special versions with intermittent or moving, vertical seal bar.
