Equipment

Shrink Wrap Machines

Semi-automatic thermo-retractable welding equipment in L-shape. Developed for operation in automatic mode, with operator to introduce products in the welding area.

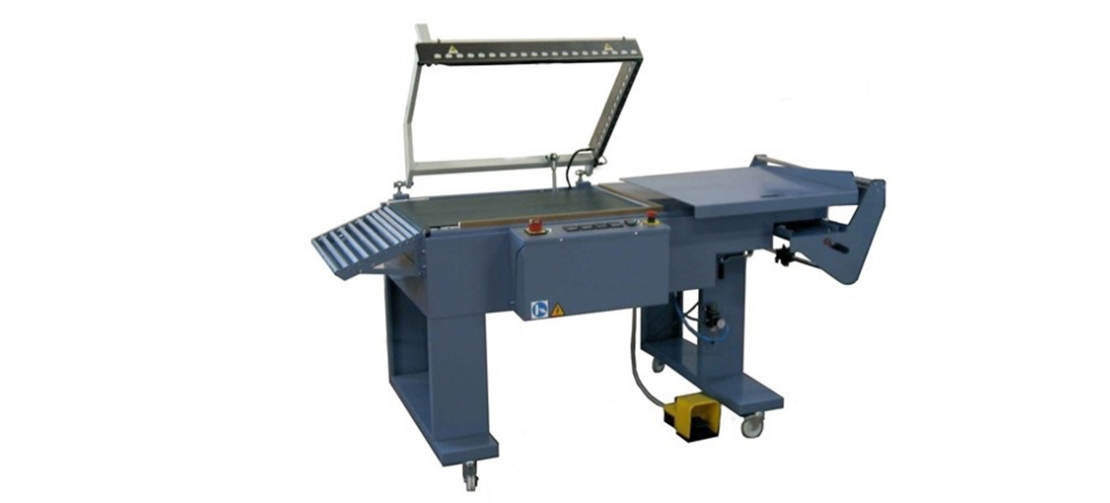

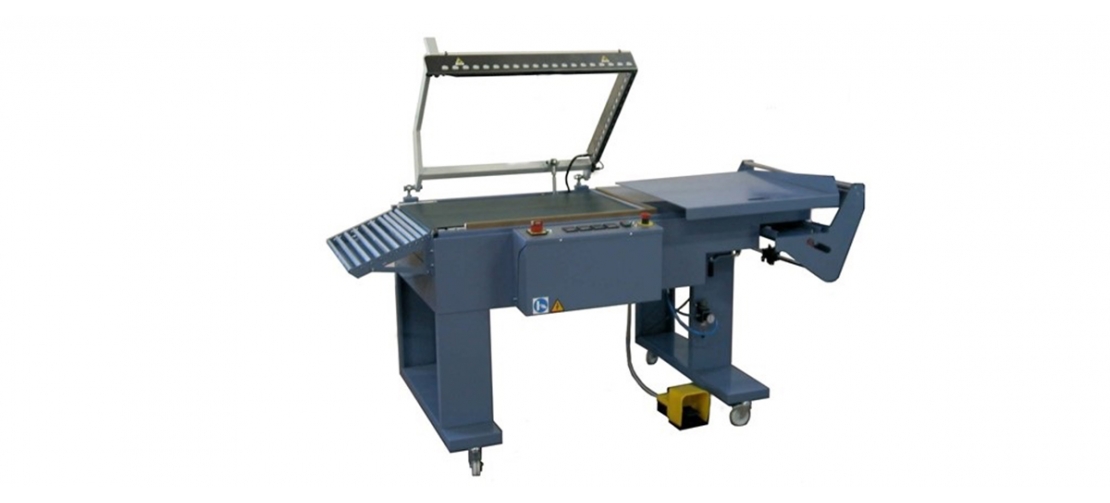

The TURBOPACK 5040 semiautomatic wrapper consists of a solid and modern structure.

The welding of the plastic is done by current impulse with movement of the upper welding ring in automatic by a pneumatic system.

It is possible to adjust the closing and opening time of the rim, making the work cycle more automatic or controll the movement of the welding rim by a pedal.

The product is carreid out from the welding area using an automatic conveyor belt which is adjustable in height using a simple crank.


Technical Data

Tension

220/380 V 3Ph

Power

3 kW

Max. Dimension Welding C x L

500X400 mm

Welding

Higher impulse

Max. Width film

500 mm

Working plane height

780 mm

Total machine length

2300 mm

Total machine width

1200 mm

Total machine height

900 mm

Compressed air

6 bar

Approximate hourly production

400 / 600
