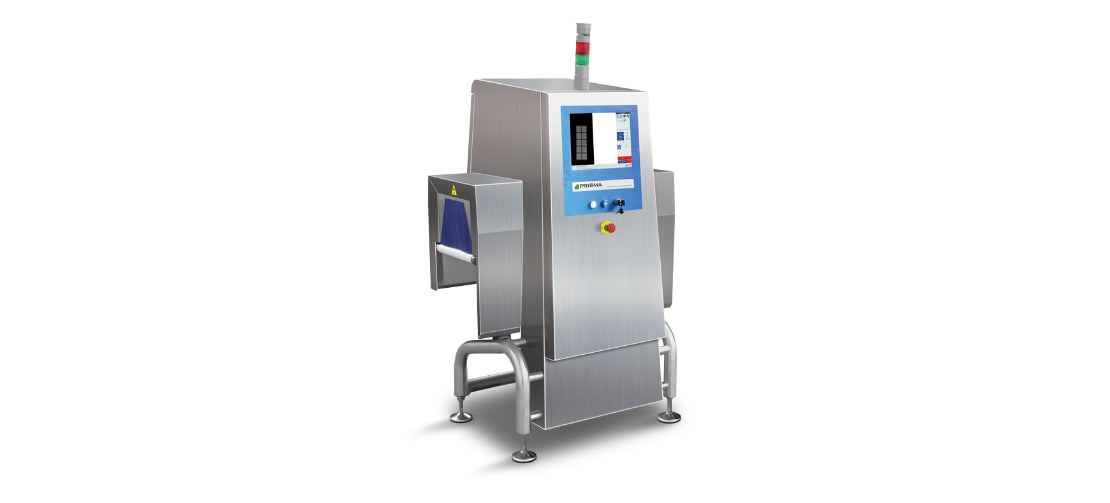

3XR11 X-Ray Inspection Equipment

X-ray inspection equipment for food products, with a maximum capacity of 5,000 grams and dimensions up to 335 x 150 mm.

Among the best X-ray inspection systems available on the market, it guarantees a complete and accurate end-of-line inspection on a variety of medium and large industrial products thanks to its quality of construction, advanced software and high quality components.

High Quality Generator and Sensor

These X-Ray Inspection equipments have high gamma generators and sensors. They operate using low energy radiation for better detection performance, less maintenance, reduced consumption and safety for the operator as well as the end user.

Product and Operator Safety

The equipment is supplied with three rows of protection curtains, the emissions are certified below 1 μSv/h and completely contained inside the equipment.

Three safety switches, an emergency stop button and a key switch, which immediately shut down the x-ray generator. It also has on-screen warnings, a start/stop switch, visual and acoustic alarms, and an internal cooling system.

The control panel and electronics, located at the front of the unit, are completely separate from the X-ray generator, positioned at the back of the unit.

Stable, Safe and Easy-Maintenance Mechanics

Simplified design, which ensures robustness and stability while facilitating cleaning and sanitising operations of the equipment. Entirely manufactured in AISI 304 stainless steel for the food and pharmaceutical industries.

TPU conveyor belt, approved for food use (FDA and EU). The quick release system of the conveyor belt allows for its quick replacement without the need to remove the equipment from the production line.

Advanced and Intuitive Electronics

Intuitive interface, easy operation as well as program definition. 15'' colour digital touch screen, IP69 rated, with 3-level password-protected access, self-check function, event history and rejection log. All models can be equipped with Ethernet and USB interfaces for data transmission.

Quality

Equipment made in Italy, made entirely in stainless steel, capable of withstanding intense washing cycles, which can be carried out extremely quickly thanks to the quick-disassembly plates.

Return on Investment

Prisma's range of equipment allows for major savings, drastically reducing product waste, false detections or production stoppages. Everything translates into a fast return on investment, thanks to the high quality of the materials and the durability of the state-of-the-art equipment.
