S-Series Impulse Sealer

Heat Sealing Machine S-Series

Semi-automatic impulse sealers

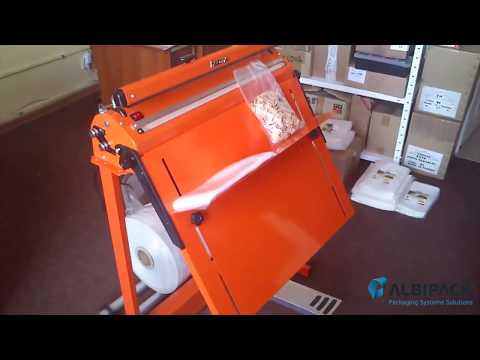

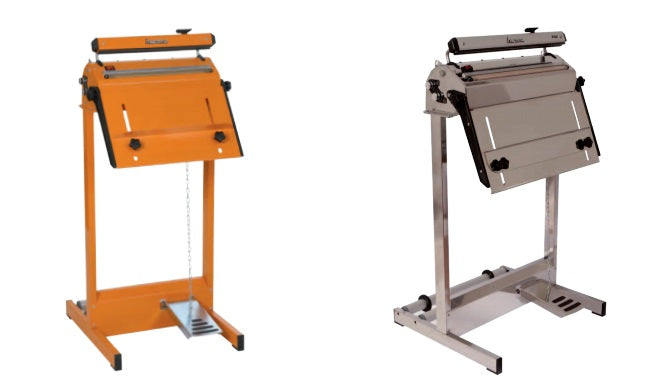

The S-Series is a range of semi-automatic sealing machines that can be used to securely seal filled bags or produce bags from roll material, suitable for sealing PE, PP, PVC, or any other laminated film with a sealable inside layer. It's produced in two finishes: S-models, in orange powder-coated steel, and SI-models, in polished stainless steel — the latter suited to food processing, pharmaceutical, and chemical industries.

S sealer range

• S-model – single 5 mm industrial seal, with an integral safety film slitter that neatly trims the edge after the sealing cycle.
• SD-model – double 5 mm wide industrial seal for enhanced seal integrity when packing powdered and liquid products; the integral slitter runs between the two seals, so the upper seal can be independently deactivated to create a single, neatly trimmed 5 mm seal.
• SB-model – bi-active upper and lower 5 mm sealing wires double the sealing power, enabling secure sealing of films up to 1.2 mm total thickness. Integral safety film slitter.

Basic features

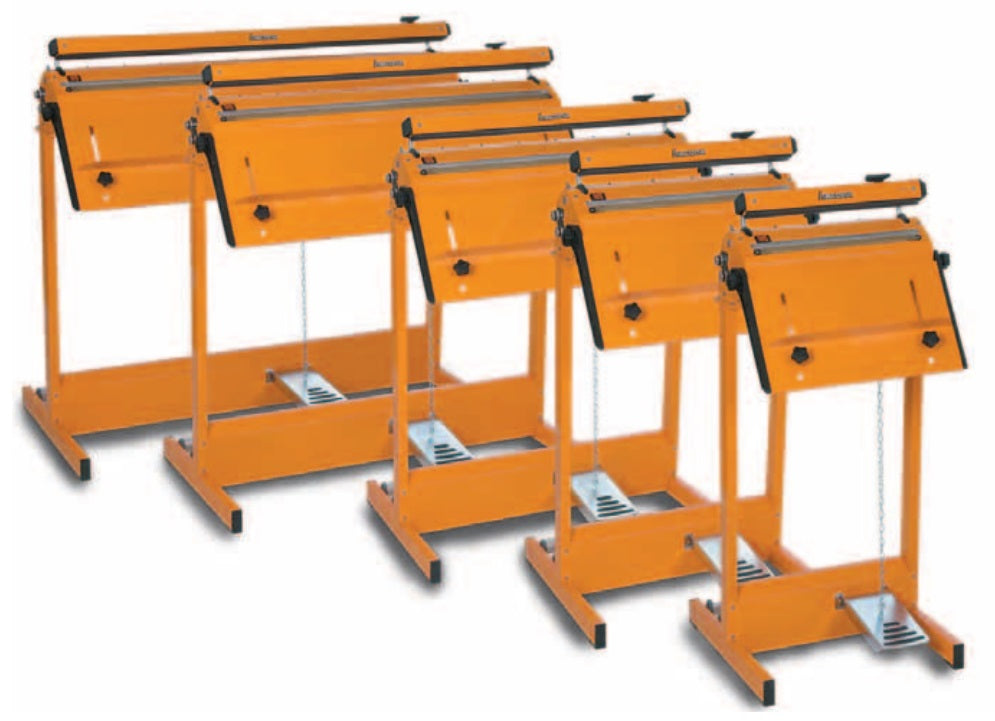

• Manufactured in six sealing widths
• Easy to operate across a variety of applications
• Electrically controlled, independently adjustable sealing and cooling times
• Gas-spring-regulated sealing bar opening for safe, smooth operation
• Integral sealing wire tensioning system for a perfect seal
• Integral safety film slitter
• Designed to both seal filled bags and produce bags from rolls

Modular accessories that can be fitted to the basic machine include bag support, foot pedal, working table, and security coding.

Accessories for S range sealers

• Support with foot pedal and film mandrel (max. roll diameter 320 mm)
• Sealing bar arms
• Working table with standard bag support (270 mm depth)
• Working table with extended bag support (570 mm depth)
• Aluminium table support arm for pack weights above 5 kg
• Mobile film roll holder with split roll function for multiple roll sizes
• Mobile foot pedal with flexible connector cable
• Film perforator unit
• Security coding – individual code number, 3 mm text height
• Sealing wire – wire seals and cuts

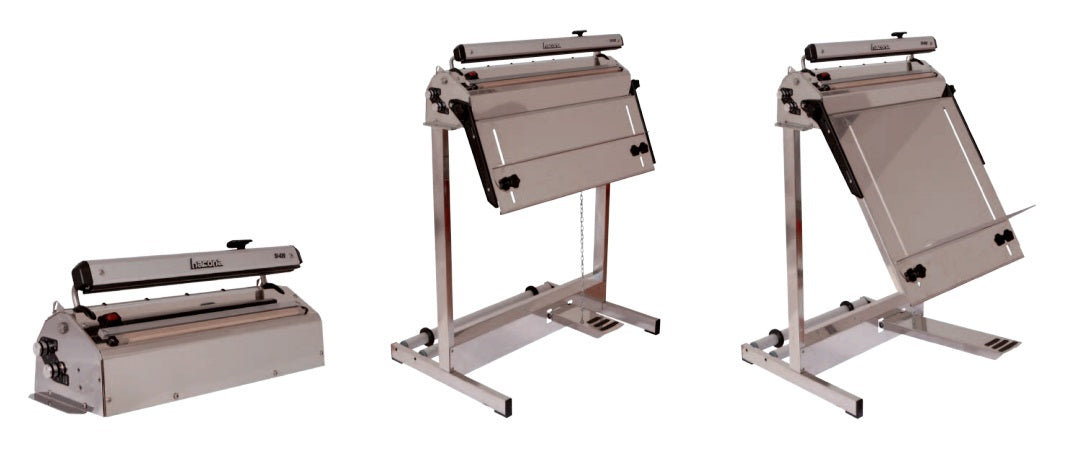

SI sealers (stainless steel)

SI impulse sealers share the same basic features as the S range but are fabricated from polished stainless steel, for use in food processing, pharmaceutical, and chemical industries. Available bench-mounted, floor-mounted with stand and foot pedal plus standard bag support, or floor-mounted with stand and foot pedal plus extended bag support.

• SI-model – single 5 mm industrial seal, with an integral safety film slitter that neatly trims the edge after the sealing cycle.
• SID-model – double 5 mm wide industrial seal for enhanced seal integrity when packing powdered and liquid products; the integral slitter runs between the two seals, so the upper seal can be independently deactivated to create a single, neatly trimmed 5 mm seal.
• SIB-model – bi-active upper and lower 5 mm sealing wires double the sealing power, enabling secure sealing of films up to 1.2 mm total thickness. Integral safety film slitter.

Accessories for SI sealers

• Support with foot pedal and film mandrel (max. roll diameter 320 mm)
• Sealing bar arms
• Working table with standard bag support (270 mm depth)
• Working table with extended bag support (570 mm depth)
• Aluminium table support arm for pack weights above 5 kg
• Mobile film roll holder with split roll function for multiple roll sizes
• Mobile foot pedal with flexible connector cable
• Film perforator unit
• Security coding – individual code number, 3 mm text height
• Sealing wire – wire seals and cuts

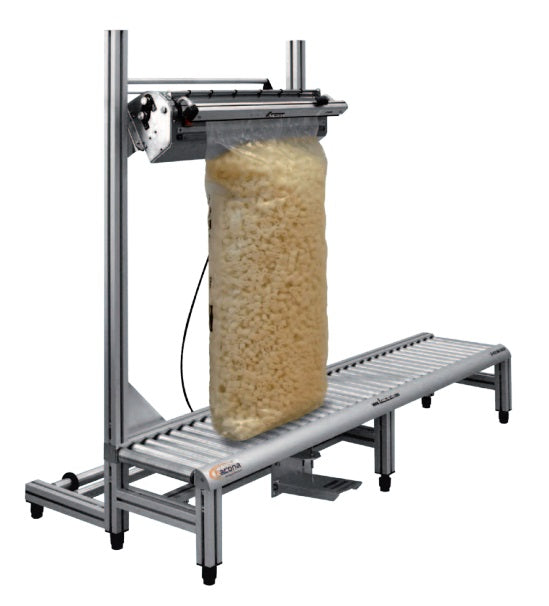

Bag-Sealer (roller conveyor system)

Designed to seal heavy bags (up to 50 kg) as a modular system across different industries. The roller conveyor makes it easy to move bags from the filling station to the sealing machine.

• Standard model – Bag-Sealer stand and modular roller conveyor system, including a standard orange powder-coated S sealer in one of five widths.
• Roller conveyor – infinitely adjustable sealing height; aluminium rollers, galvanised steel fittings and connectors.
• Stainless steel bag sealer – suitable for use with SI stainless steel sealers, with an anodised aluminium frame and stainless-steel fittings and connectors.

The Bag-Sealer roller conveyor can be used with any S sealer.
