ECOFARD AOL Automatic Baler

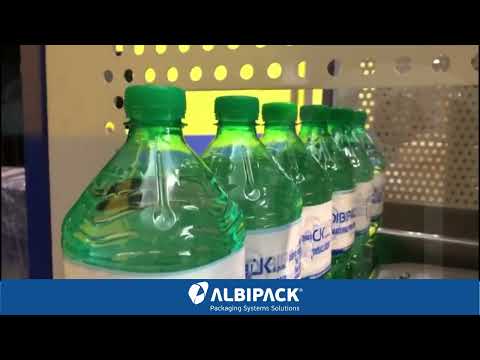

Fully automatic, the ECOFARD AOL sleeve-wrapper machine has lateral feeding for “multipackage" (several products wrapped up together on several lines) without an operator. Practical high-speed sleeve-wrapping machine able to package a wide range of products (bottles, vases, jars, pots, cans, phials, cases etc) and to shelter boxes integrating and/or replacing the use of carton boxes at end-of-line with great management advantages.

The machine is compact and consists in a sealer and a tunnel; it works in a very simple way: a motorized in-feed belt conveyor, situated at 90 ° from the sealing bar, drives the products from the loading area towards the sealing area. Then a transversal sealing-bar (that has a pneumatic movement and temperature is electronically controlled) cuts and seals the film.

At this point the wrapped product enters the tunnel for shrinking. Ideal for high outputs.

Features:

• LATERAL automatic feeding;

• Sealing time electronically adjustable;

• Sealing-bar with two sealing blades and one teflon-coated cutting blade controlled by electronic thermo-regulator ; pneumatic movement;

• Product detected by a system of photocell;

• The wrapped product stays on a plate behind the sealing area untill the outcoming wrapped product pushes it onto the tunnel belt conveyor that is always running;

• In-line in-feed belt conveyor running with fixed speed;

• Tunnel steel zinc-coated mesh belt conveyor;

• Tunnel air heating by finned resistances controlled by an electronic thermo-regulator;

• Closed and forced air circulation with air flow adjustable by flaps in order to have the best shrinking;

• Cooling fan at the tunnel exit included;
• Internal tunnel parts made by steel zinc-coated;

• External powder painting;

• Double-rolls system with motorized top and bottom film-unwinding.

Options:

• Customized in-feed belt conveyor;
• Vertical rollers to compress the film excess at the tunnel exit;
• Customized tunnel and sealing-bar height;
• After-sealing-bar top-clamp to block unstable products;
• Frequency AC engine controller for tunnel belt conveyor;
• Discharging idle roller conveyor;

The machines works with single-wounded (flat) LLDPE

Machine made according to CE rules.
